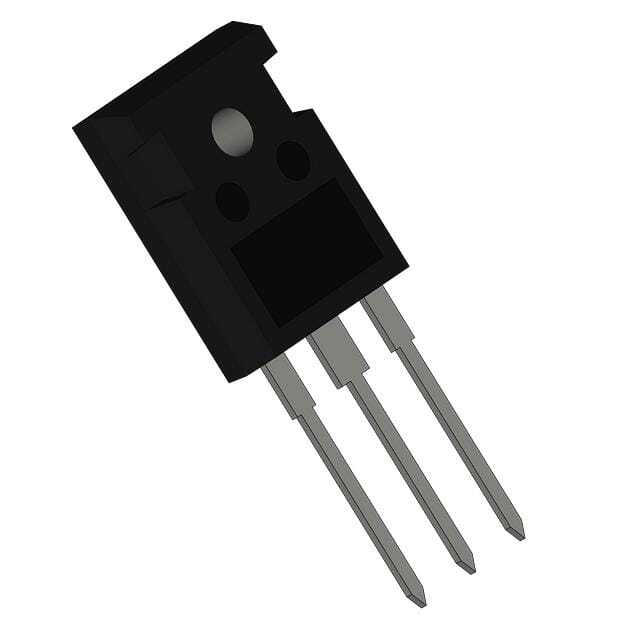

FGH40N60SMD

SKU: 61419

Manufacturer: onsemi

Trans IGBT Chip N-CH 600V 80A 349000mW 3-Pin(3+Tab) TO-247 Tube

7840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Technology	Field Stop
Channel Type	N
Configuration	Single
Maximum Gate Emitter Voltage (V)	±20
Collector-Emitter Voltage-Max (V)	600
Typical Collector Emitter Saturation Voltage (V)	1.9
Maximum Continuous Collector Current (A)	80
Maximum Gate Emitter Leakage Current (uA)	0.4
Maximum Power Dissipation (mW)	349000
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tube
Pin Count	3
Standard Package Method	TO-247
Original Package	TO-247
Terminal Form	Through Hole
Package Height	20.57
Package Length	15.62
Package Width	4.7
PCB changed	3
Tab	Tab
