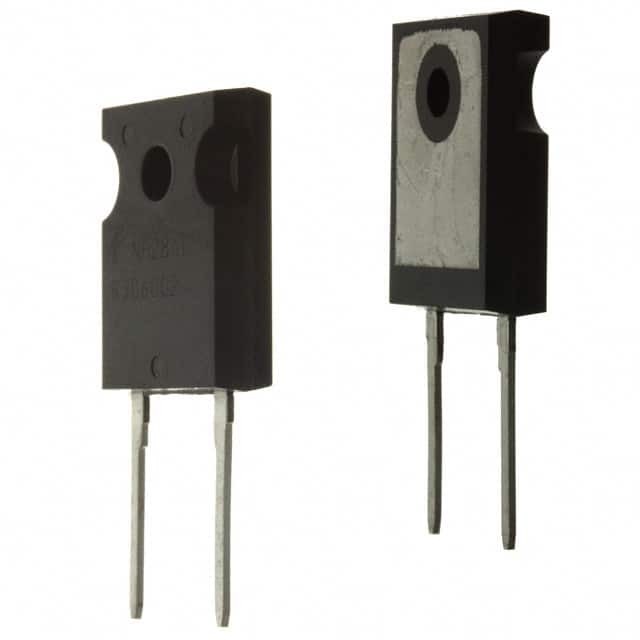

FFSH30120A

SKU: 11718

Manufacturer: onsemi

Rectifier Diode Schottky SiC 1.2KV 46A 2-Pin(2+Tab) TO-247 Tube

2550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Schottky Diode
Body Material	SiC
Configuration	Single
Peak Reverse Repetitive Voltage (V)	1200
Maximum Continuous Forward Current (A)	46
Peak Non-Repetitive Surge Current (A)	230
Peak Forward Voltage (V)	1.75@30A
Peak Reverse Current (uA)	200
Maximum Diode Capacitance (pF)	1740(Typ)
Maximum Power Dissipation (mW)	500000
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tube
Original Package	TO-247
Pin Count	2
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	20.57
Package Length	15.62
Package Width	4.7
PCB changed	2
Tab	Tab
