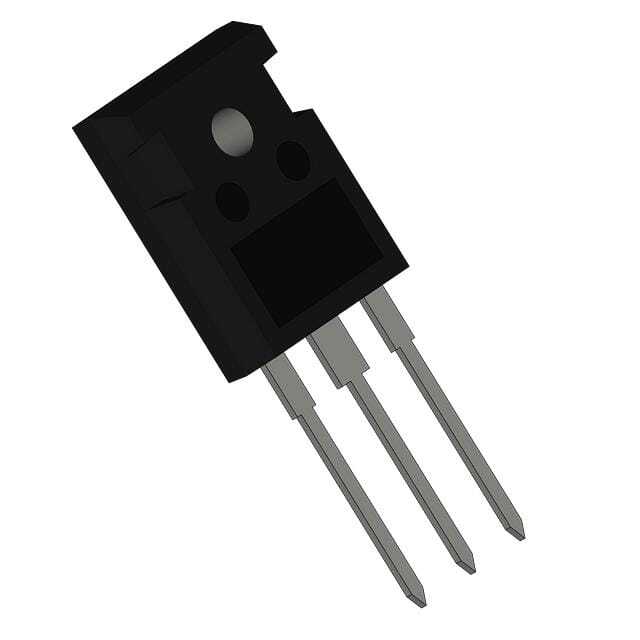

FFH50US60S

SKU: 75422

Manufacturer: onsemi

Rectifier Diode Switching 600V 50A 124ns 2-Pin(2+Tab) TO-247 Tube

11930 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	LTB
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	600
Configuration	Single
Peak Reverse Repetitive Voltage (V)	600
Maximum Continuous Forward Current (A)	50
Peak Non-Repetitive Surge Current (A)	500
Peak Forward Voltage (V)	1.54
Peak Reverse Current (uA)	100
Maximum Power Dissipation (mW)	200000
Peak Reverse Recovery Time (ns)	124
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tube
Original Package	TO-247
Pin Count	2
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	20.57
Package Length	15.62
Package Width	4.7
PCB changed	2
Tab	Tab
