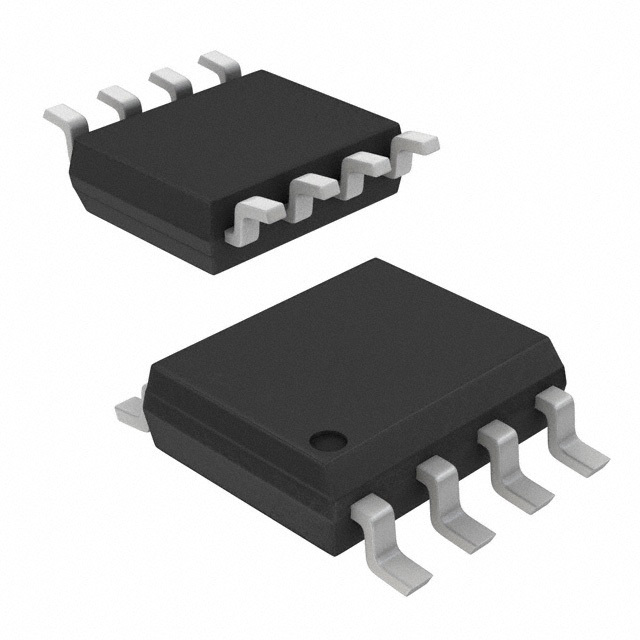

    FDS6894A

    SKU: 117870
    Manufacturer: onsemi
    Trans MOSFET N-CH 20V 8A 8-Pin SOIC N T/R
    2190 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Dual Dual Drain
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 2
    Maximum Drain Source Voltage (V) 20
    Maximum Gate Source Voltage (V) ±8
    Maximum Gate Threshold Voltage (V) 1.5
    Maximum Continuous Drain Current (A) 8
    Maximum Drain Source Resistance (mOhm) 17@4.5V
    Typical Gate Charge @ Vgs (nC) 17@4.5V
    Typical Gate to Drain Charge (nC) 3.3
    Typical Gate to Source Charge (nC) 2.8
    Typical Input Capacitance @ Vds (pF) 1676@10V
    Typical Output Capacitance (pF) 288
    Maximum Power Dissipation (mW) 2000
    Typical Fall Time (ns) 12
    Typical Rise Time (ns) 14
    Typical Turn-Off Delay Time (ns) 33
    Typical Turn-On Delay Time (ns) 10
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Original Package SOIC N
    Pin Count 8
    Standard Package Method SOP
    Terminal Form Surface Mount
    Package Height 1.65(Max)
    Package Length 4.9
    Package Width 3.9
    PCB changed 8
