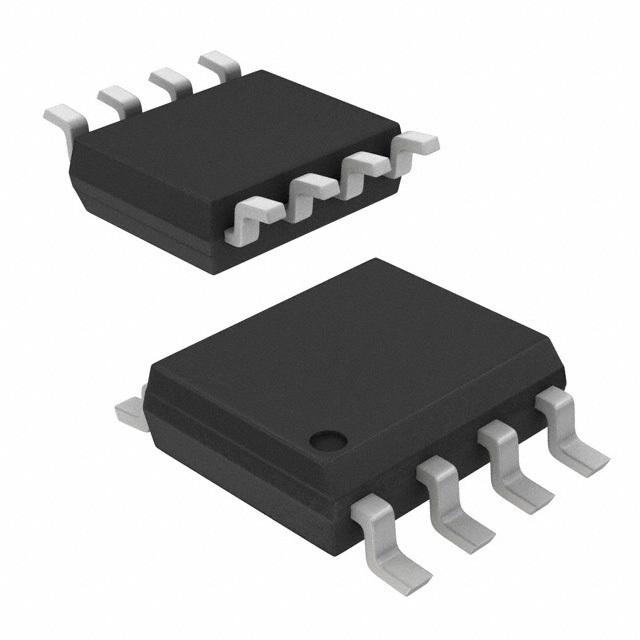

FDS6679

SKU: 153369

Manufacturer: onsemi

Trans MOSFET P-CH 30V 13A 8-Pin SOIC T/R

Download sample

Request Free Samples

18670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Process Technology	PowerTrench
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±25
Maximum Gate Threshold Voltage (V)	3
Operating Junction Temperature (°C)	-55 to 175
Maximum Continuous Drain Current (A)	13
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	9@10V
Typical Gate Charge @ Vgs (nC)	71@10V
Typical Gate Charge @ 10V (nC)	71
Typical Gate to Drain Charge (nC)	15
Typical Gate to Source Charge (nC)	12
Typical Input Capacitance @ Vds (pF)	3939@15V
Typical Reverse Transfer Capacitance @ Vds (pF)	498@15V
Minimum Gate Threshold Voltage (V)	1
Typical Output Capacitance (pF)	972
Maximum Power Dissipation (mW)	2500
Typical Fall Time (ns)	65
Typical Rise Time (ns)	10
Typical Turn-Off Delay Time (ns)	110
Typical Turn-On Delay Time (ns)	19
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tape and Reel
Maximum Power Dissipation on PCB @ TC=25°C (W)	2.5
Maximum Pulsed Drain Current @ TC=25°C (A)	50
Maximum Junction Ambient Thermal Resistance on PCB (°C/W)	125
Typical Diode Forward Voltage (V)	0.7
Typical Gate Plateau Voltage (V)	2.8
Maximum Diode Forward Voltage (V)	1.2
Typical Gate Threshold Voltage (V)	1.6
Maximum Positive Gate Source Voltage (V)	25
Maximum Continuous Drain Current on PCB @ TC=25°C (A)	13
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	4.9
Package Width	3.9
PCB changed	8

Your name

Your email

Enquiry

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Quad Drain Triple Source
Process Technology	PowerTrench
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±25
Maximum Gate Threshold Voltage (V)	3
Operating Junction Temperature (°C)	-55 to 175
Maximum Continuous Drain Current (A)	13
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	9@10V
Typical Gate Charge @ Vgs (nC)	71@10V
Typical Gate Charge @ 10V (nC)	71
Typical Gate to Drain Charge (nC)	15
Typical Gate to Source Charge (nC)	12
Typical Input Capacitance @ Vds (pF)	3939@15V
Typical Reverse Transfer Capacitance @ Vds (pF)	498@15V
Minimum Gate Threshold Voltage (V)	1
Typical Output Capacitance (pF)	972
Maximum Power Dissipation (mW)	2500
Typical Fall Time (ns)	65
Typical Rise Time (ns)	10
Typical Turn-Off Delay Time (ns)	110
Typical Turn-On Delay Time (ns)	19
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tape and Reel
Maximum Power Dissipation on PCB @ TC=25°C (W)	2.5
Maximum Pulsed Drain Current @ TC=25°C (A)	50
Maximum Junction Ambient Thermal Resistance on PCB (°C/W)	125
Typical Diode Forward Voltage (V)	0.7
Typical Gate Plateau Voltage (V)	2.8
Maximum Diode Forward Voltage (V)	1.2
Typical Gate Threshold Voltage (V)	1.6
Maximum Positive Gate Source Voltage (V)	25
Maximum Continuous Drain Current on PCB @ TC=25°C (A)	13
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	4.9
Package Width	3.9
PCB changed	8
