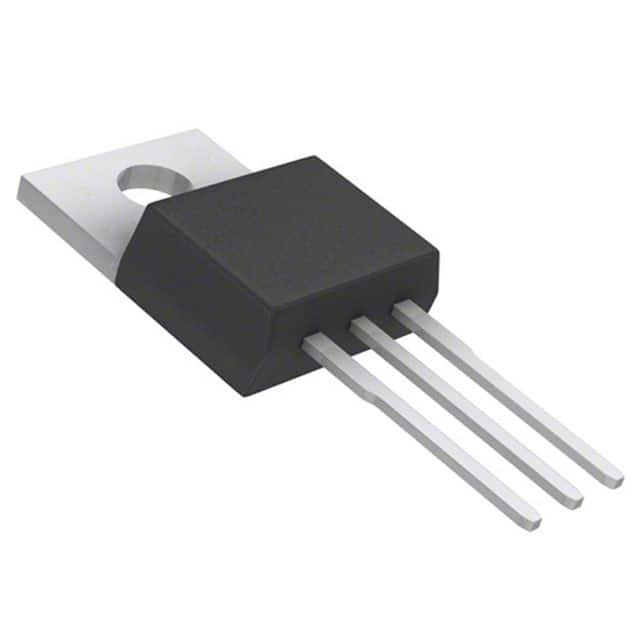

FDP2710

SKU: 139205

Manufacturer: onsemi

Trans MOSFET N-CH 250V 50A 3-Pin(3+Tab) TO-220 Tube

13290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	250
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	50
Maximum Drain Source Resistance (mOhm)	42.5@10V
Typical Gate Charge @ Vgs (nC)	78@10V
Typical Gate Charge @ 10V (nC)	78
Typical Input Capacitance @ Vds (pF)	5470@25V
Maximum Power Dissipation (mW)	260000
Typical Fall Time (ns)	154
Typical Rise Time (ns)	252
Typical Turn-Off Delay Time (ns)	112
Typical Turn-On Delay Time (ns)	80
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.4(Max)
Package Length	10.67(Max)
Package Width	4.7(Max)
PCB changed	3
Tab	Tab
