    FDP047N08

    SKU: 25892
    Manufacturer: onsemi

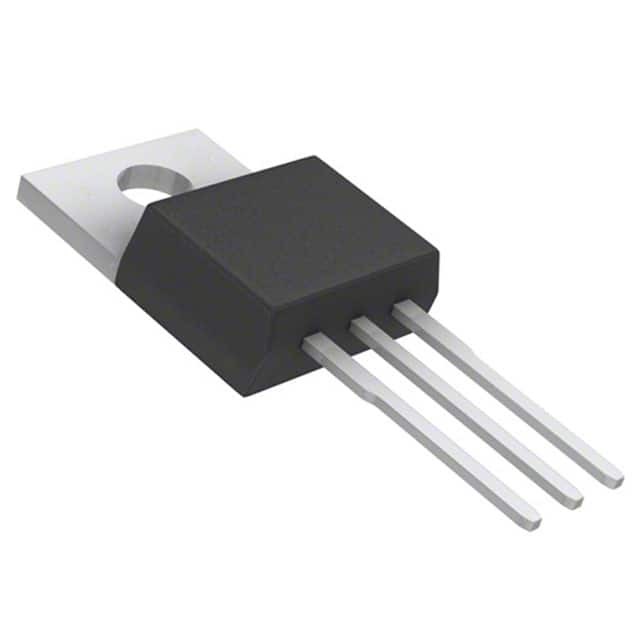

    Trans MOSFET N-CH 75V 164A 3-Pin(3+Tab) TO-220 Tube
    5900 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.29.00.95
    SVHC Yes
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Process Technology TMOS
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 75
    Maximum Gate Source Voltage (V) ±20
    Maximum Continuous Drain Current (A) 164
    Maximum Drain Source Resistance (mOhm) 4.7@10V
    Typical Gate Charge @ Vgs (nC) 117@10V
    Typical Gate Charge @ 10V (nC) 117
    Typical Input Capacitance @ Vds (pF) 7080@25V
    Maximum Power Dissipation (mW) 268000
    Typical Fall Time (ns) 114
    Typical Rise Time (ns) 147
    Typical Turn-Off Delay Time (ns) 220
    Typical Turn-On Delay Time (ns) 100
    Operating Temperature-Min -55
    Operating Temperature-Max 175
    Packing Method Tube
    Pin Count 3
    Standard Package Method TO-220
    Original Package TO-220
    Terminal Form Through Hole
    Package Height 9.4(Max)
    Package Length 10.67(Max)
    Package Width 4.7(Max)
    PCB changed 3
    Tab Tab
