FDMS86520

SKU: 61407

Manufacturer: onsemi

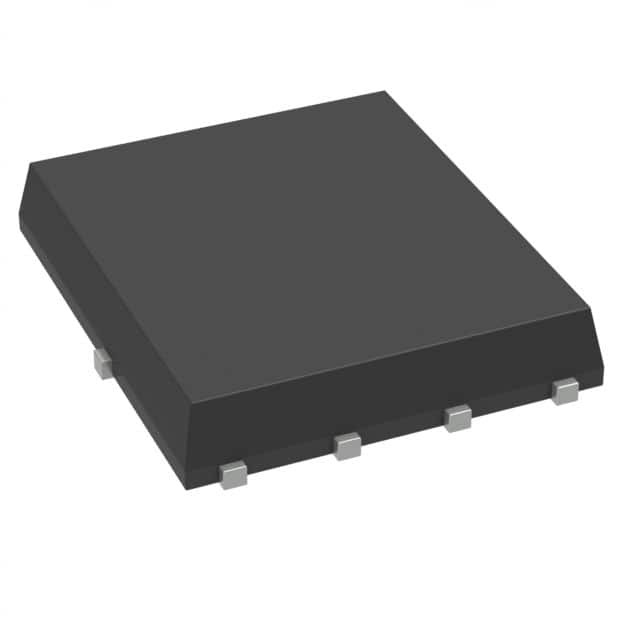

Trans MOSFET N-CH Si 60V 14A 8-Pin PQFN EP T/R

38980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single Quad Drain Triple Source
Process Technology	TrenchFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	4.5
Maximum Continuous Drain Current (A)	14
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	7.4@10V
Typical Gate Charge @ Vgs (nC)	28@10V
Typical Gate Charge @ 10V (nC)	28
Typical Input Capacitance @ Vds (pF)	2140@30V
Maximum Power Dissipation (mW)	2500
Typical Fall Time (ns)	4
Typical Rise Time (ns)	6.7
Typical Turn-Off Delay Time (ns)	20
Typical Turn-On Delay Time (ns)	17
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PQFN EP
Pin Count	8
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5(Max)
Package Width	5.85(Max)
PCB changed	8
