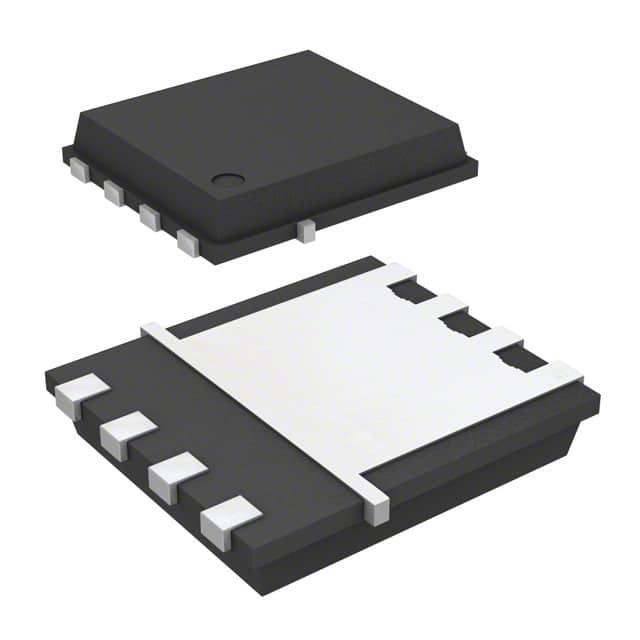

FDMC7696

SKU: 11706

Manufacturer: onsemi

Trans MOSFET N-CH Si 30V 12A 8-Pin WDFN EP T/R

74300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single Quad Drain Triple Source
Process Technology	TMOS
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	12
Maximum Drain Source Resistance (mOhm)	11.5@10V
Typical Gate Charge @ Vgs (nC)	8@5V
Typical Gate Charge @ 10V (nC)	16
Typical Input Capacitance @ Vds (pF)	1075@15V
Maximum Power Dissipation (mW)	2400
Typical Fall Time (ns)	2
Typical Rise Time (ns)	2
Typical Turn-Off Delay Time (ns)	19
Typical Turn-On Delay Time (ns)	9
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	DFN
Original Package	WDFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	3.2
Package Width	3.2
PCB changed	8
