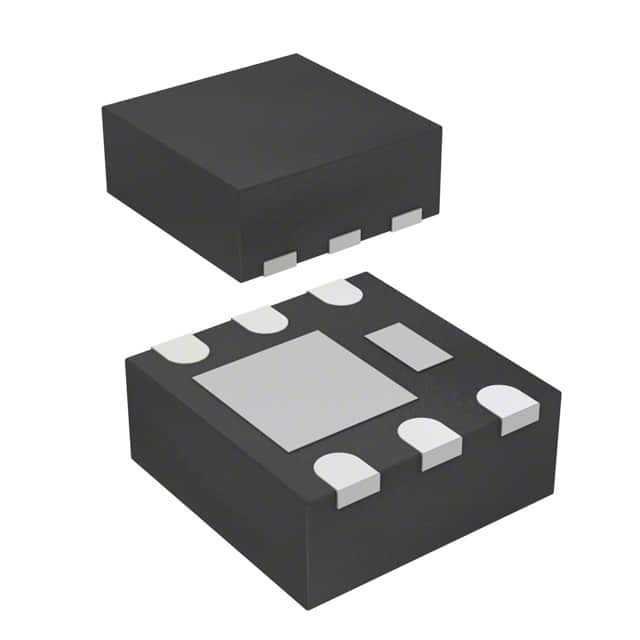

FDMA1027P

SKU: 117861

Manufacturer: onsemi

Trans MOSFET P-CH 20V 2.2A 6-Pin WDFN EP T/R

20330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±8
Maximum Continuous Drain Current (A)	2.2
Maximum Drain Source Resistance (mOhm)	120@4.5V
Typical Gate Charge @ Vgs (nC)	4@4.5V
Typical Input Capacitance @ Vds (pF)	435@10V
Maximum Power Dissipation (mW)	1400
Typical Fall Time (ns)	6
Typical Rise Time (ns)	11
Typical Turn-Off Delay Time (ns)	15
Typical Turn-On Delay Time (ns)	9
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	6
Standard Package Method	DFN
Original Package	WDFN EP
Terminal Form	Surface Mount
Package Height	0.75
Package Length	2
Package Width	2
PCB changed	6
