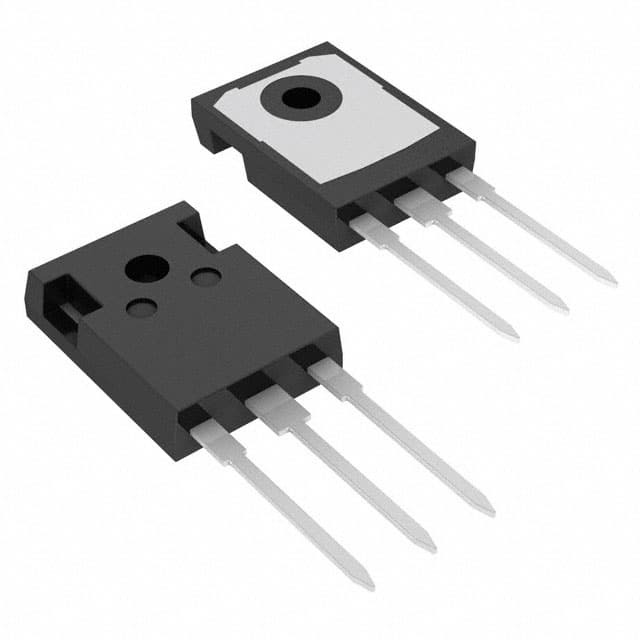

    FDH055N15A

    SKU: 75410
    Manufacturer: onsemi
    Trans MOSFET N-CH Si 150V 167A 3-Pin(3+Tab) TO-247 Tube
    21680 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.29.00.95
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Body Material Si
    Configuration Single
    Process Technology PowerTrench
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 150
    Maximum Gate Source Voltage (V) ±20
    Maximum Gate Threshold Voltage (V) 4
    Operating Junction Temperature (°C) -55 to 175
    Maximum Continuous Drain Current (A) 167
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 5.9@10V
    Typical Gate Charge @ Vgs (nC) 92@10V
    Typical Gate Charge @ 10V (nC) 92
    Typical Gate to Drain Charge (nC) 16
    Typical Gate to Source Charge (nC) 31
    Typical Reverse Recovery Charge (nC) 348
    Typical Input Capacitance @ Vds (pF) 7100@75V
    Typical Reverse Transfer Capacitance @ Vds (pF) 23@75V
    Minimum Gate Threshold Voltage (V) 2
    Typical Output Capacitance (pF) 664
    Maximum Power Dissipation (mW) 429000
    Typical Fall Time (ns) 21
    Typical Rise Time (ns) 67
    Typical Turn-Off Delay Time (ns) 71
    Typical Turn-On Delay Time (ns) 35
    Operating Temperature-Min -55
    Operating Temperature-Max 175
    Packing Method Tube
    Maximum Pulsed Drain Current @ TC=25°C (A) 668
    Typical Gate Plateau Voltage (V) 4.8
    Typical Reverse Recovery Time (ns) 105
    Maximum Diode Forward Voltage (V) 1.25
    Maximum Positive Gate Source Voltage (V) 20
    Original Package TO-247
    Pin Count 3
    Standard Package Method TO-247
    Terminal Form Through Hole
    Package Height 20.57
    Package Length 15.62
    Package Width 4.7
    PCB changed 3
    Tab Tab
