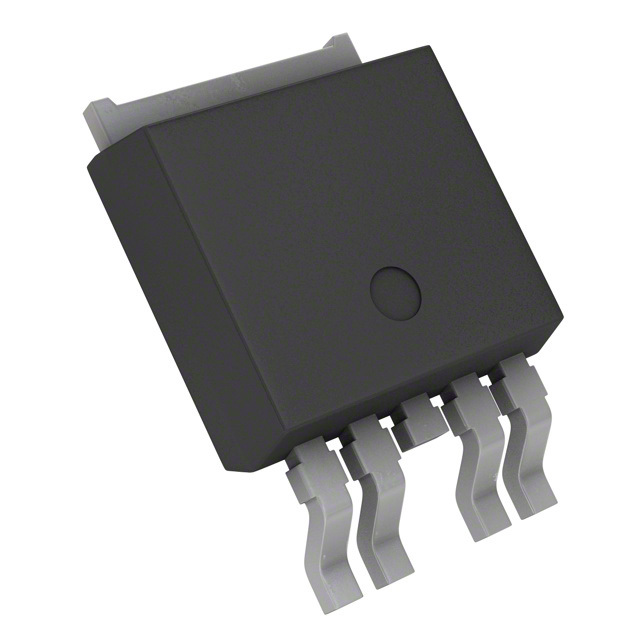

FDD8424H

SKU: 18878

Manufacturer: onsemi

Trans MOSFET N/P-CH Si 40V 9A/6.5A 5-Pin(4+Tab) DPAK T/R

18450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Dual Common Drain
Process Technology	TMOS
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	40
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	9@N Channel
Maximum Drain Source Resistance (mOhm)	24@10V@N Channel
Typical Gate Charge @ Vgs (nC)	14@10V@N Channel
Typical Gate Charge @ 10V (nC)	14@N Channel
Typical Input Capacitance @ Vds (pF)	750@20V@N Channel
Maximum Power Dissipation (mW)	3100
Typical Fall Time (ns)	6@N Channel
Typical Rise Time (ns)	13@N Channel
Typical Turn-Off Delay Time (ns)	17@N Channel
Typical Turn-On Delay Time (ns)	7
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	5
Standard Package Method	TO-252
Original Package	DPAK
Terminal Form	Surface Mount
Package Height	2.39(Max)
Package Length	6.73(Max)
Package Width	6.22(Max)
PCB changed	4
Tab	Tab
