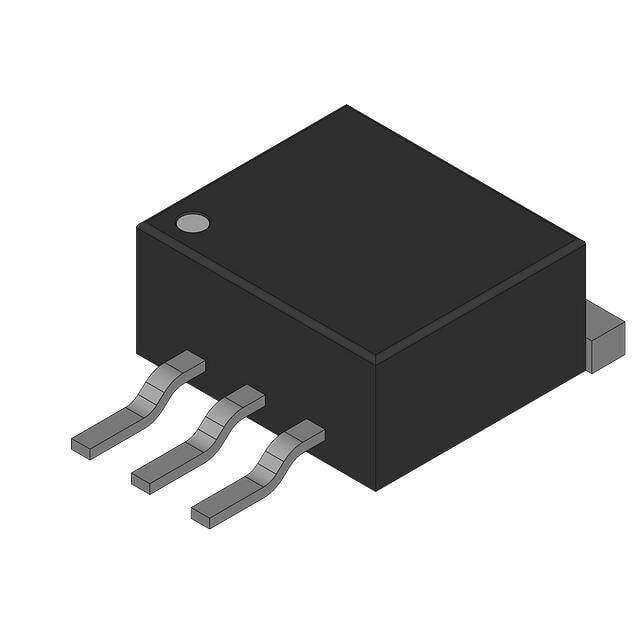

    FDD6680A

    SKU: 89478
    Manufacturer: onsemi
    Trans MOSFET N-CH 30V 14A 3-Pin(2+Tab) DPAK T/R
    64650 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Process Technology TMOS
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 30
    Maximum Gate Source Voltage (V) ±20
    Maximum Gate Threshold Voltage (V) 3
    Maximum Continuous Drain Current (A) 14
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 9.5@10V
    Typical Gate Charge @ Vgs (nC) 14@5V
    Typical Input Capacitance @ Vds (pF) 1425@15V
    Maximum Power Dissipation (mW) 2800
    Typical Fall Time (ns) 13
    Typical Rise Time (ns) 9
    Typical Turn-Off Delay Time (ns) 31
    Typical Turn-On Delay Time (ns) 11
    Operating Temperature-Min -55
    Operating Temperature-Max 175
    Packing Method Tape and Reel
    Original Package DPAK
    Pin Count 3
    Standard Package Method TO-252
    Terminal Form Surface Mount
    Package Height 2.3
    Package Length 6.6
    Package Width 6.1
    PCB changed 2
