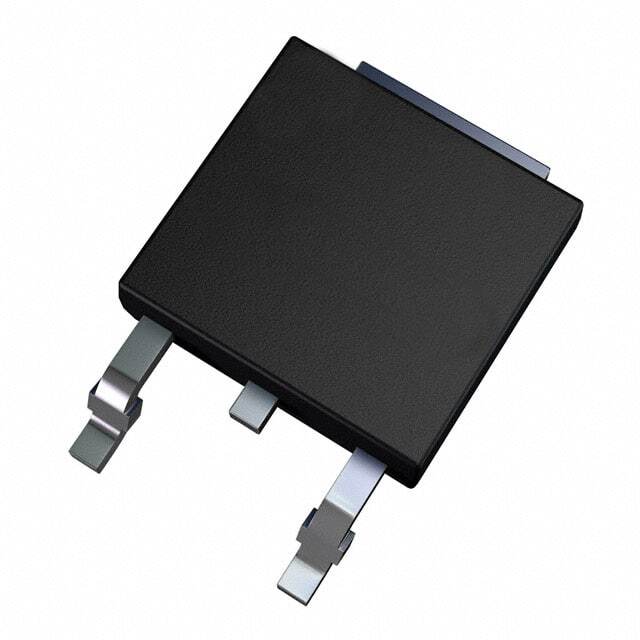

    FDD26AN06A0

    SKU: 18877
    Manufacturer: onsemi
    Trans MOSFET N-CH 60V 7A Automotive 3-Pin(2+Tab) DPAK T/R
    10830 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Supplier Unconfirmed
    ECCN (US) EAR99
    Part Status Obsolete
    Automotive Yes
    PPAP Unknown
    Product Category Power MOSFET
    Configuration Single
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 60
    Maximum Gate Source Voltage (V) ±20
    Maximum Continuous Drain Current (A) 7
    Maximum Drain Source Resistance (mOhm) 26@10V
    Typical Gate Charge @ Vgs (nC) 13@10V
    Typical Gate Charge @ 10V (nC) 13
    Typical Input Capacitance @ Vds (pF) 800@25V
    Maximum Power Dissipation (mW) 75000
    Typical Fall Time (ns) 35
    Typical Rise Time (ns) 72
    Typical Turn-Off Delay Time (ns) 23
    Typical Turn-On Delay Time (ns) 9
    Operating Temperature-Min -55
    Operating Temperature-Max 175
    Supplier Temperature Grade Automotive
    Packing Method Tape and Reel
    Original Package DPAK
    Pin Count 3
    Standard Package Method TO-252
    Terminal Form Surface Mount
    Package Height 2.39(Max)
    Package Length 6.73(Max)
    Package Width 6.22(Max)
    PCB changed 2
    Tab Tab
