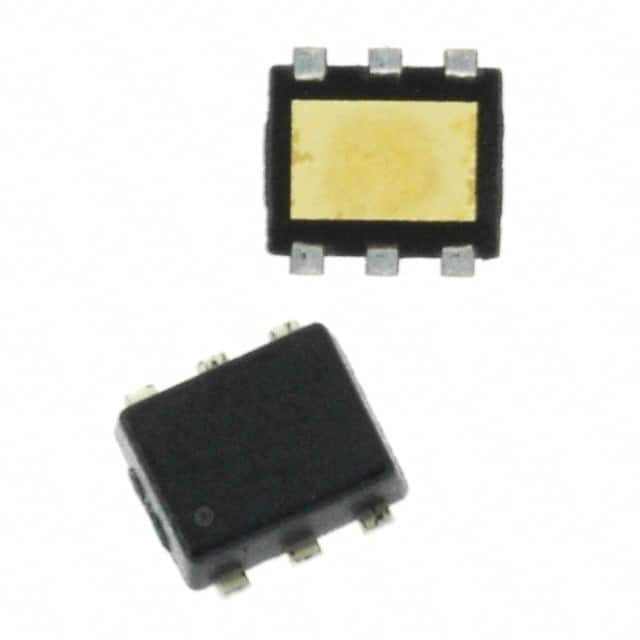

FDC6036P

SKU: 89475

Manufacturer: onsemi

Trans MOSFET P-CH 20V 5A 6-Pin SSOT FLMP T/R

15660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual Dual Source
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±8
Maximum Continuous Drain Current (A)	5
Maximum Drain Source Resistance (mOhm)	44@4.5V
Typical Gate Charge @ Vgs (nC)	10@4.5V
Typical Input Capacitance @ Vds (pF)	992@10V
Maximum Power Dissipation (mW)	1800
Typical Fall Time (ns)	20
Typical Rise Time (ns)	10
Typical Turn-Off Delay Time (ns)	40
Typical Turn-On Delay Time (ns)	12
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SSOT FLMP
Pin Count	6
Standard Package Method	SSOT
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	3(Max)
Package Width	2.55(Max)
