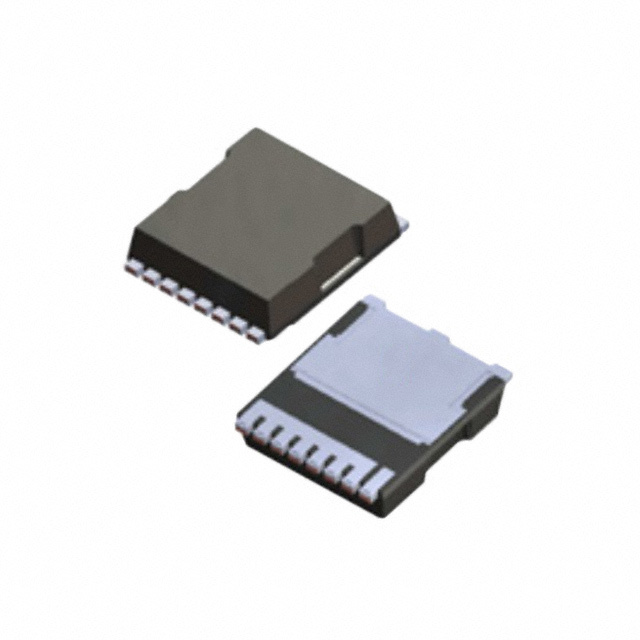

    FDBL86361-F085

    SKU: 82438
    Manufacturer: onsemi
    Trans MOSFET N-CH 80V 300A Automotive 9-Pin(8+Tab) TO-LL T/R
    3360 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.29.00.95
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive Yes
    PPAP Yes
    Product Category Power MOSFET
    Configuration Single Seven Source
    Process Technology TMOS
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 80
    Maximum Gate Source Voltage (V) ±20
    Maximum Gate Threshold Voltage (V) 4
    Maximum Continuous Drain Current (A) 300
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 1.4@10V
    Typical Gate Charge @ Vgs (nC) 172@10V
    Typical Gate Charge @ 10V (nC) 172
    Typical Input Capacitance @ Vds (pF) 12800@25V
    Maximum Power Dissipation (mW) 429000
    Typical Fall Time (ns) 48
    Typical Rise Time (ns) 73
    Typical Turn-Off Delay Time (ns) 87
    Typical Turn-On Delay Time (ns) 42
    Operating Temperature-Min -55
    Operating Temperature-Max 175
    Packing Method Tape and Reel
    Pin Count 9
    Original Package TO-LL
    Terminal Form Surface Mount
    Package Height 2.4(Max)
    Package Length 9.9(Max)
    Package Width 10.48(Max)
    PCB changed 8
