FAN25800AUC28X

SKU: 132080

Manufacturer: onsemi

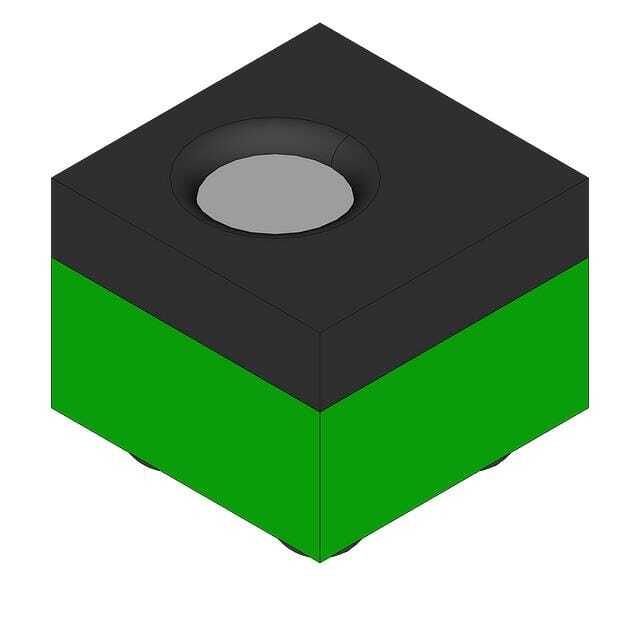

LDO Regulator Pos 2.8V 0.5A 4-Pin WLCSP T/R

2510 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1.9
Output Type	Fixed
Output Voltage (V)	2.8
Maximum Output Current (A)	0.5
Minimum Input Voltage (V)	2.3
Maximum Input Voltage (V)	5.5
Maximum Dropout Voltage @ Current (V)	0.13@250mA
Load Regulation	12uV/mA(Typ)
Junction to Ambient	180°C/W
Special Features	Short Circuit Protection
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	WLCSP
Pin Count	4
Terminal Form	Surface Mount
Package Height	0.19
Package Length	0.65
Package Width	0.65
PCB changed	4
