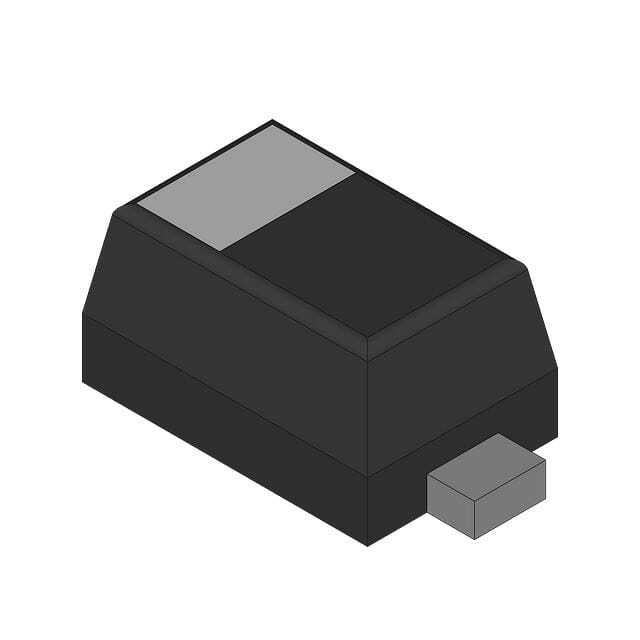

ESD9B5.0ST5G

SKU: 54353

Manufacturer: onsemi

ESD Suppressor Diode TVS Bi-Dir 5V 2-Pin SOD-923 T/R

1324700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	No
PPAP	No
Type	TVS
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Maximum Response Time (ns)	1
Maximum Working Voltage (V)	5
Minimum Breakdown Voltage (V)	5.8
Maximum Breakdown Voltage (V)	7.8
Maximum Clamping Voltage (V)	15
Maximum Peak Pulse Current (A)	2
Maximum Leakage Current (uA)	1
Test Current (mA)	1
Maximum Power Dissipation (mW)	300
Capacitance Value (pF)	15(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	SOD
Original Package	SOD-923
Terminal Form	Surface Mount
Package Height	0.37
Package Length	0.8
Package Width	0.6
PCB changed	2
