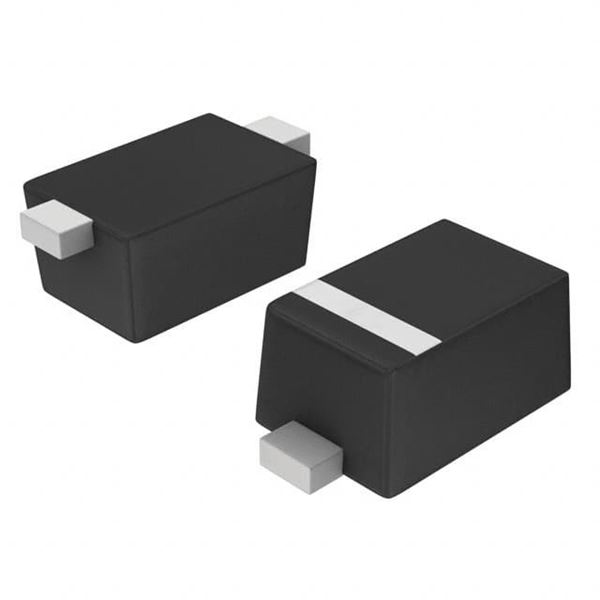

ESD5Z3.3T1G

SKU: 139164

Manufacturer: onsemi

ESD Suppressor Diode TVS Uni-Dir 3.3V 2-Pin SOD-523 T/R

685960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	TVS
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Maximum Response Time (ns)	1(Typ)
Maximum Working Voltage (V)	3.3
Minimum Breakdown Voltage (V)	5
Maximum Clamping Voltage (V)	14.1
Maximum Peak Pulse Current (A)	11.2
Maximum Leakage Current (uA)	0.05
Test Current (mA)	1
Maximum Power Dissipation (mW)	500
Peak Pulse Power Dissipation (W)	158
Capacitance Value (pF)	105(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	SOD
Original Package	SOD-523
Terminal Form	Surface Mount
Package Height	0.6
Package Length	1.2
Package Width	0.8
PCB changed	2
