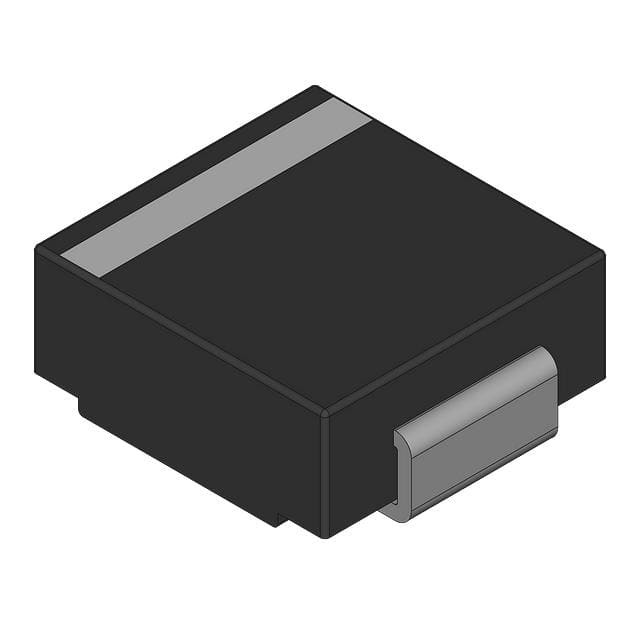

ES3D

SKU: 75363

Manufacturer: onsemi

Rectifier Diode Switching 200V 3A 30ns 2-Pin SMC T/R

100240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	200
Maximum Continuous Forward Current (A)	3@Ta=75C
Peak Non-Repetitive Surge Current (A)	100
Peak Forward Voltage (V)	0.95
Peak Reverse Current (uA)	10
Maximum Power Dissipation (mW)	1660
Peak Reverse Recovery Time (ns)	30
Operating Temperature-Min	-50
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	DO-214-AB
Original Package	SMC
Terminal Form	Surface Mount
Package Height	2.45(Max)
Package Length	7.15(Max)
Package Width	6.25(Max)
PCB changed	2
