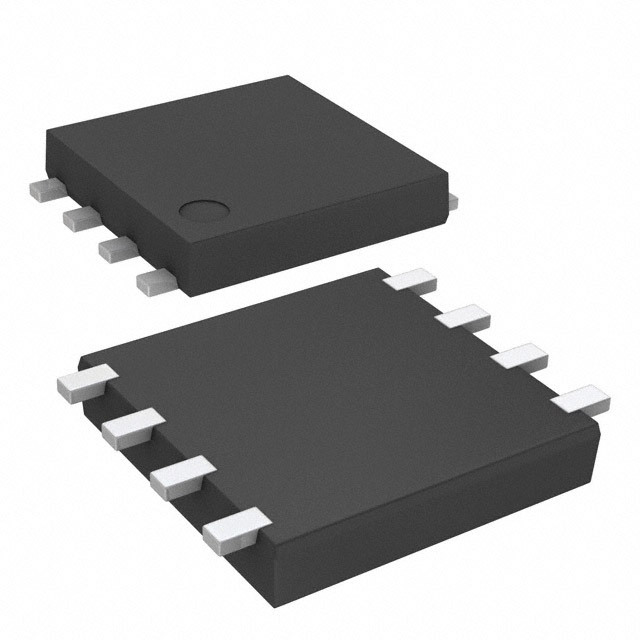

ECH8695R-TL-W

SKU: 136479

Manufacturer: onsemi

Trans MOSFET N-CH 24V 11A 8-Pin SOT-28FL T/R

2320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual Common Drain
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	24
Maximum Gate Source Voltage (V)	±12.5
Maximum Gate Threshold Voltage (V)	1.3
Maximum Continuous Drain Current (A)	11
Maximum Gate Source Leakage Current (nA)	1000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	9.1@4.5V
Typical Gate Charge @ Vgs (nC)	10@4.5V
Maximum Power Dissipation (mW)	1500
Typical Fall Time (ns)	370
Typical Rise Time (ns)	320
Typical Turn-Off Delay Time (ns)	1240
Typical Turn-On Delay Time (ns)	300
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-28FL
Pin Count	8
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.93(Max)
Package Length	2.9
Package Width	2.3
PCB changed	8
