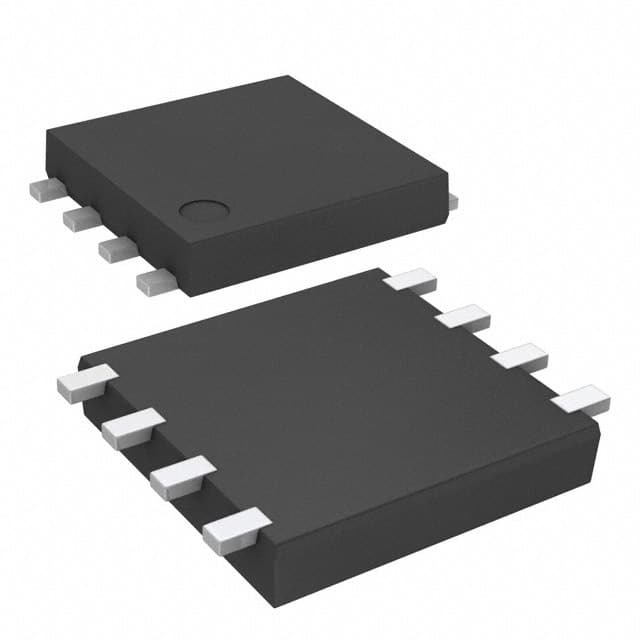

ECH8664R-TL-H

SKU: 23235

Manufacturer: onsemi

Trans MOSFET N-CH Si 30V 7A 8-Pin ECH T/R

18480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Dual Common Quad Drain
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±12
Maximum Continuous Drain Current (A)	7
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	23.5@4.5V
Typical Gate Charge @ Vgs (nC)	10@4.5V
Maximum Power Dissipation (mW)	1400
Typical Fall Time (ns)	1700
Typical Rise Time (ns)	850
Typical Turn-Off Delay Time (ns)	3300
Typical Turn-On Delay Time (ns)	270
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	ECH
Pin Count	8
Standard Package Method	ECH
Terminal Form	Surface Mount
Package Height	0.93(Max)
Package Length	2.9
Package Width	2.3
PCB changed	8
