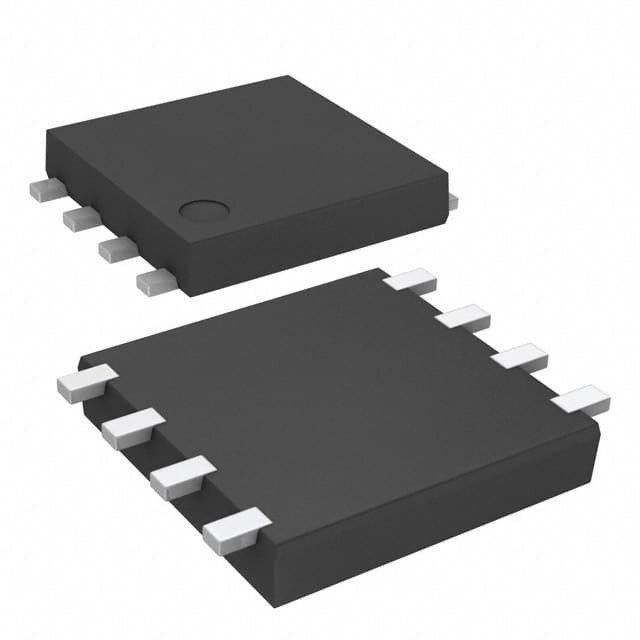

ECH8655R-TL-H

SKU: 68259

Manufacturer: onsemi

Trans MOSFET N-CH Si 24V 9A 8-Pin ECH T/R

7670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Dual Dual Drain
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	24
Maximum Gate Source Voltage (V)	±12
Maximum Continuous Drain Current (A)	9
Maximum Drain Source Resistance (mOhm)	17@4.5V
Typical Gate Charge @ Vgs (nC)	16.8@10V
Typical Gate Charge @ 10V (nC)	16.8
Maximum Power Dissipation (mW)	1500
Typical Fall Time (ns)	2100
Typical Rise Time (ns)	1100
Typical Turn-Off Delay Time (ns)	2400
Typical Turn-On Delay Time (ns)	320
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	ECH
Pin Count	8
Standard Package Method	ECH
Terminal Form	Surface Mount
Package Height	0.93(Max)
Package Length	2.9
Package Width	2.3
PCB changed	8
