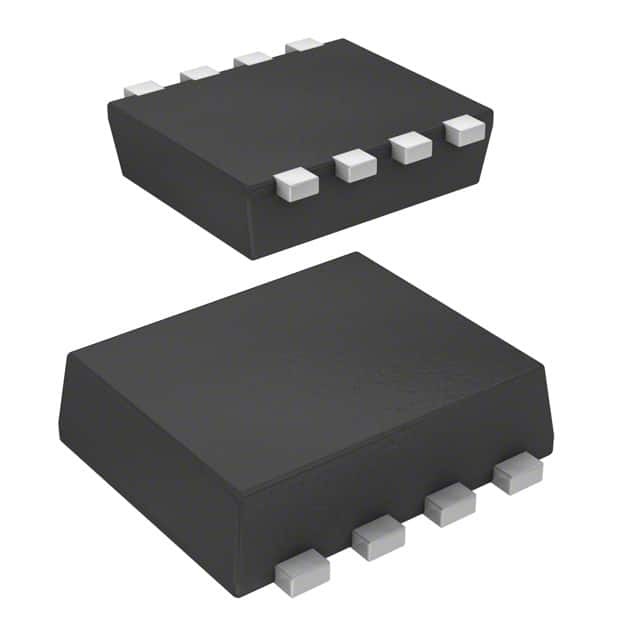

ECH8410-TL-H

SKU: 139047

Manufacturer: onsemi

Trans MOSFET N-CH Si 30V 12A 8-Pin ECH T/R

7830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single Quad Drain Triple Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	12
Maximum Drain Source Resistance (mOhm)	10@10V
Typical Gate Charge @ Vgs (nC)	31@10V
Typical Gate Charge @ 10V (nC)	31
Typical Input Capacitance @ Vds (pF)	1700@10V
Maximum Power Dissipation (mW)	1600
Typical Fall Time (ns)	72
Typical Rise Time (ns)	50
Typical Turn-Off Delay Time (ns)	110
Typical Turn-On Delay Time (ns)	17
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	ECH
Pin Count	8
Standard Package Method	ECH
Terminal Form	Surface Mount
Package Height	0.93(Max)
Package Length	2.9
Package Width	2.3
PCB changed	8
