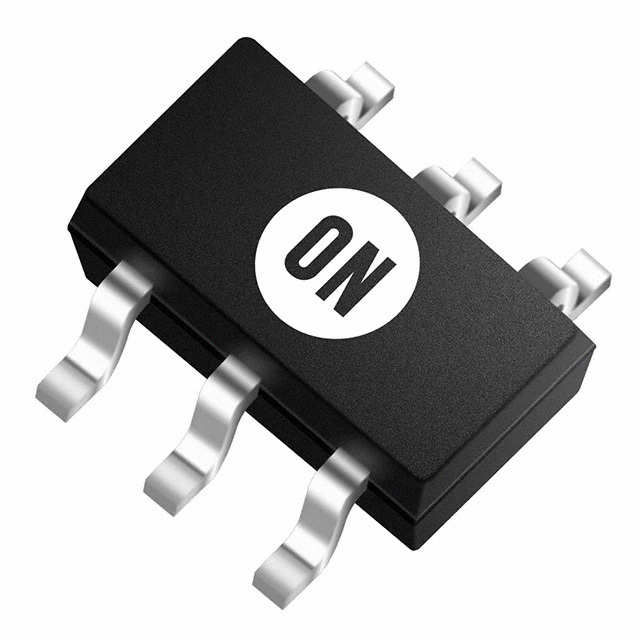

DF6A6.8FUT1G

SKU: 46934

Manufacturer: onsemi

ESD Suppressor Diode TVS Uni-Dir 5V 6-Pin SC-88 T/R

70 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	TVS
Configuration	Quad
Direction Type	Uni-Directional
Number of Elements per pcs	4
Maximum Working Voltage (V)	5
Minimum Breakdown Voltage (V)	6.4
Maximum Breakdown Voltage (V)	7.2
Maximum Leakage Current (uA)	1
Test Current (mA)	5
Maximum Power Dissipation (mW)	385
Peak Pulse Power Dissipation (W)	75
Capacitance Value (pF)	40(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SC-88
Pin Count	6
Standard Package Method	SC
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
