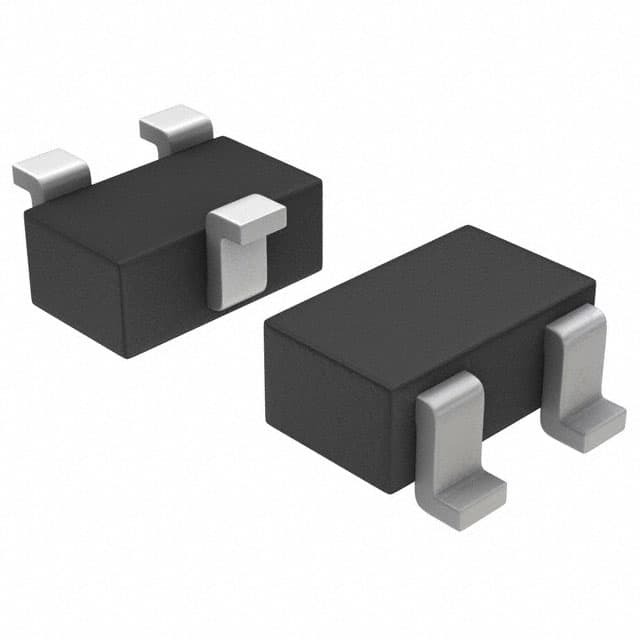

DF3A6.8FUT1G

SKU: 138887

Manufacturer: onsemi

ESD Suppressor Diode TVS Uni-Dir 5V 3-Pin SC-70 T/R

12180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	TVS
Configuration	Dual Common Anode
Direction Type	Uni-Directional
Number of Elements per pcs	2
Maximum Working Voltage (V)	5
Minimum Breakdown Voltage (V)	6.4
Maximum Breakdown Voltage (V)	7.2
Maximum Clamping Voltage (V)	16
Maximum Peak Pulse Current (A)	9.37
Maximum Leakage Current (uA)	0.5
Test Current (mA)	5
Maximum Power Dissipation (mW)	200
Peak Pulse Power Dissipation (W)	150
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	3
Standard Package Method	SOT-323
Original Package	SC-70
Terminal Form	Surface Mount
Package Height	0.85
Package Length	2.1
Package Width	1.24
PCB changed	3
