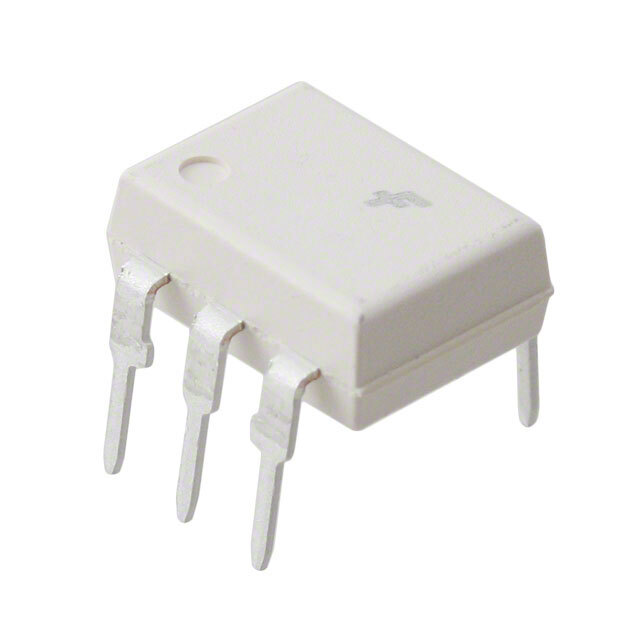

CNY173M

SKU: 67925

Manufacturer: onsemi

DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP W Bag

81350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Transistor With Base
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	5250
Operating Temperature-Min	-55
Operating Temperature-Max	100
Maximum Forward Voltage (V)	1.65
Collector-Emitter Voltage-Max (V)	70
Maximum Current Transfer Ratio (%)	200
Standard	UL
Maximum Collector-Emitter Saturation Voltage (mV)	400
Maximum Power Dissipation (mW)	250
Maximum Reverse Voltage (V)	6
Typical Forward Voltage (V)	1.35
Maximum Rise Time (us)	6
Maximum Fall Time (us)	24
Maximum Forward Current (mA)	60
Packing Method	Bag
Minimum Current Transfer Ratio (%)	100
Current Transfer Ratio Test Current (mA)	10
Standard Package Method	DIP
Pin Count	6
Original Package	PDIP W
Terminal Form	Through Hole
Package Height	3.53(Max)
Package Length	8.89(Max)
Package Width	6.6(Max)
PCB changed	6
