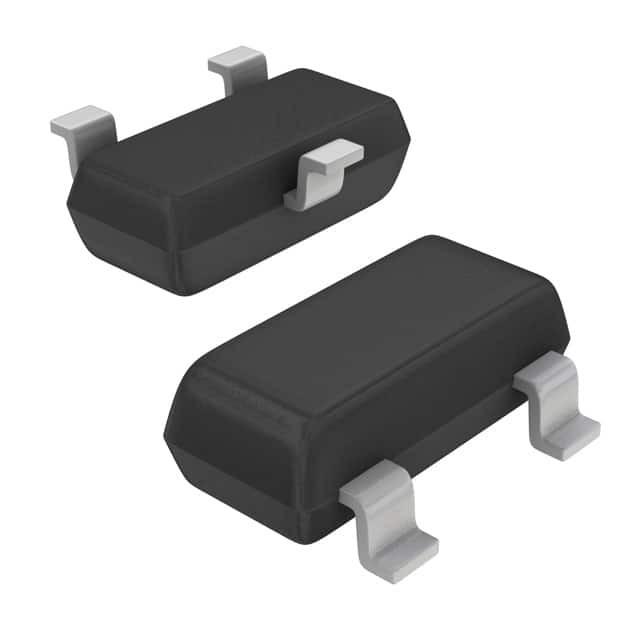

CM1213A-01SO

SKU: 96035

Manufacturer: onsemi

ESD Suppressor Diode Diode Array Uni-Dir 5.5V 3-Pin SOT-23 T/R

22280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Diode Array
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	5.5
Minimum Breakdown Voltage (V)	6.5
Maximum Breakdown Voltage (V)	9
Maximum Clamping Voltage (V)	10(Typ)
Maximum Peak Pulse Current (A)	1
Maximum Leakage Current (uA)	1
Test Current (mA)	10
Maximum Power Dissipation (mW)	225
Capacitance Value (pF)	1.2
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tape and Reel
Fail Safe Protection	No
Pin Count	3
Standard Package Method	SOT
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	0.94
Package Length	2.9
Package Width	1.3
PCB changed	3
