CD4541BCM

SKU: 138612

Manufacturer: onsemi

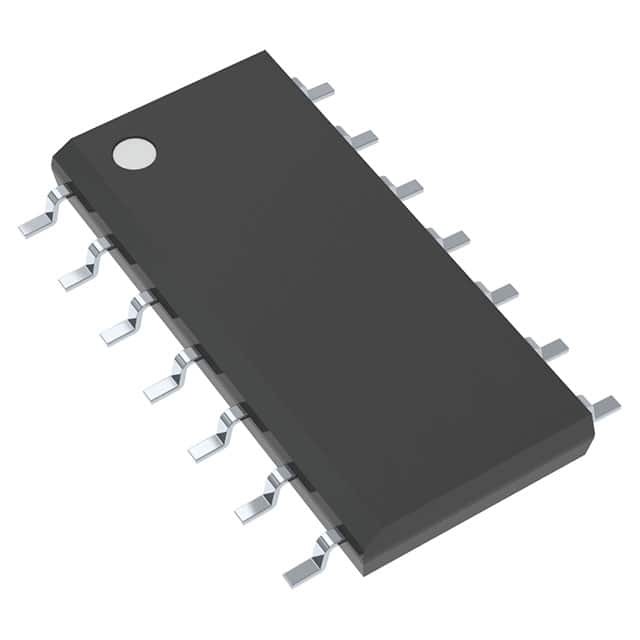

Programmable Timer Single -55°C 125°C 14-Pin SOIC N Rail

510 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Programmable
Number of Internal Timers	1
Absolute Propagation Delay Time (ns)	8000
Process Technology	CMOS
Maximum Propagation Delay Time @ Maximum CL (ns)	8000@5V
Output Logic Level	TTL
Maximum High Level Output Current (mA)	-16.3(Min)
Maximum Low Level Output Current (mA)	19.3(Min)
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	15
Maximum Quiescent Current (mA)	0.02
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Rail
Original Package	SOIC N
Pin Count	14
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	8.75(Max)
Package Width	4(Max)
PCB changed	14
