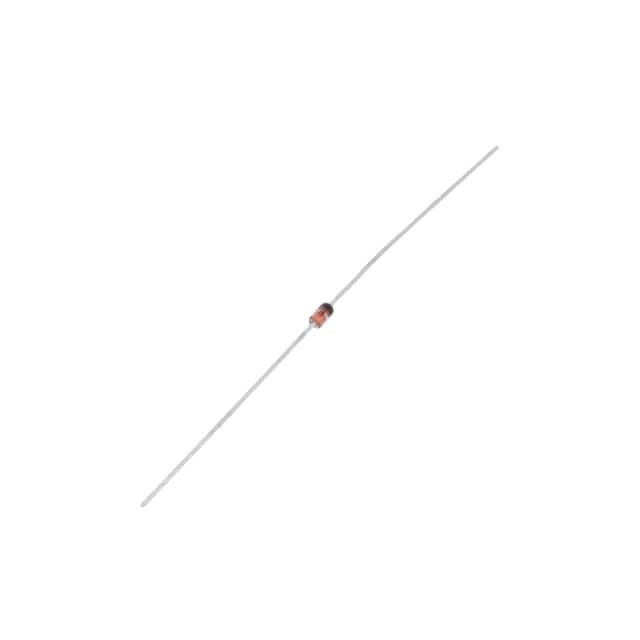

BZX55C43

SKU: 100803

Manufacturer: onsemi

Zener Diode Single 43V 5% 90Ohm 500mW 2-Pin DO-35 Bulk

2300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	43
Zener Voltage Tolerance	5%
Maximum Power Dissipation (mW)	500
Test Current (mA)	2.5
Maximum Reverse Leakage Current (uA)	0.1
Maximum Regulator Current (mA)	9.2
Maximum Zener Impedance (Ohm)	90
Operating Temperature-Min	-65
Operating Temperature-Max	200
Packing Method	Bulk
Original Package	DO-35
Pin Count	2
Standard Package Method	DO-204-AH
Diameter	1.91(Max)
Terminal Form	Through Hole
Package Length	4.56(Max)
PCB changed	2
