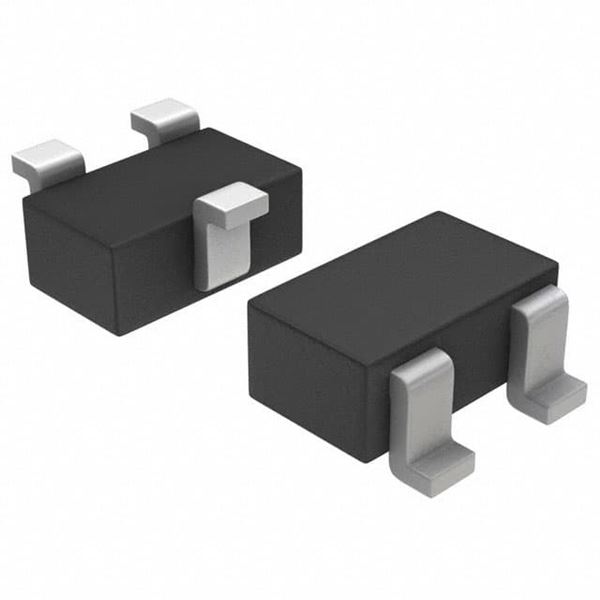

BSS138W

SKU: 110019

Manufacturer: onsemi

Trans MOSFET N-CH 50V 0.21A 3-Pin SC-70 T/R

13440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	50
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	0.21
Maximum Drain Source Resistance (mOhm)	3500@10V
Typical Gate Charge @ Vgs (nC)	1.1@10V
Typical Gate Charge @ 10V (nC)	1.1
Typical Input Capacitance @ Vds (pF)	38@25V
Maximum Power Dissipation (mW)	340
Typical Fall Time (ns)	6.5
Typical Rise Time (ns)	1.9
Typical Turn-Off Delay Time (ns)	6.7
Typical Turn-On Delay Time (ns)	2.3
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Original Package	SC-70
Pin Count	3
Standard Package Method	SOT-323
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
PCB changed	3
