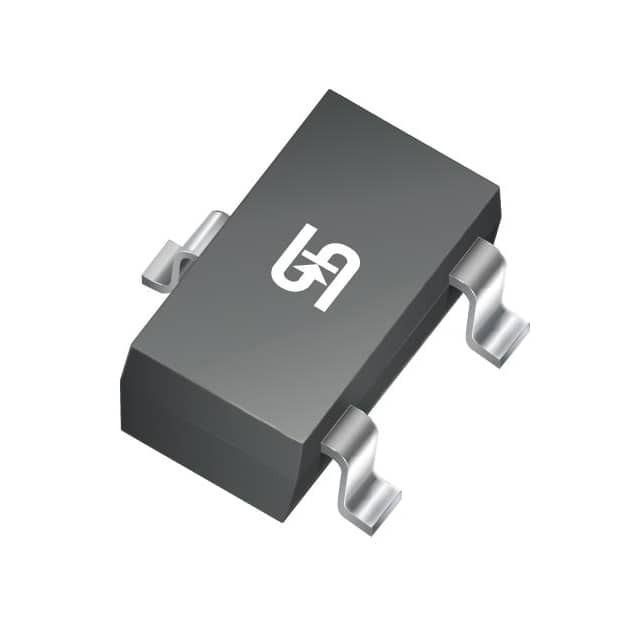

BSS123W

SKU: 79591

Manufacturer: onsemi

Trans MOSFET N-CH 100V 0.17A 3-Pin SC-70 T/R

2020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	100
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2
Maximum Continuous Drain Current (A)	0.17
Maximum Gate Source Leakage Current (nA)	50
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	6000@10V
Typical Input Capacitance @ Vds (pF)	71@25V
Maximum Power Dissipation (mW)	200
Typical Fall Time (ns)	5.73
Typical Rise Time (ns)	1.24
Typical Turn-Off Delay Time (ns)	8.4
Typical Turn-On Delay Time (ns)	2.94
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SC-70
Pin Count	3
Standard Package Method	SOT-323
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
PCB changed	3
