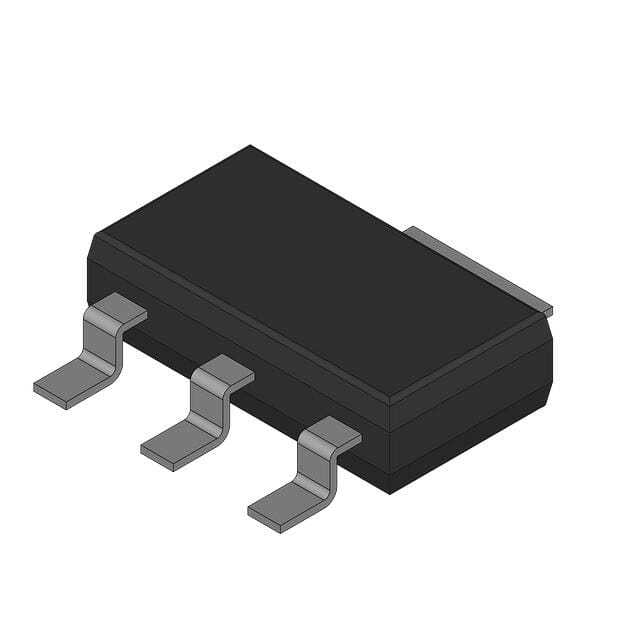

BSP50

SKU: 88779

Manufacturer: onsemi

Trans Darlington NPN 45V 0.8A 1000mW 4-Pin(3+Tab) SOT-223 T/R

6400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.75
Automotive	No
PPAP	No
Type	NPN
Configuration	Single Dual Collector
Number of Elements per pcs	1
Collector-Emitter Voltage-Max (V)	45
Collector Base Voltage-Max (V)	60
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	1.9@0.5mA@500mA
Maximum Continuous DC Collector Current (A)	0.8
Maximum Collector Cut-Off Current (uA)	0.05
Maximum Collector-Emitter Saturation Voltage (V)	1.3@0.5mA@500mA
Minimum DC Current Gain	1000@150mA@10V
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	4
Standard Package Method	SOT
Original Package	SOT-223
Terminal Form	Surface Mount
Package Height	1.69(Max)
Package Length	6.5
Package Width	3.5
PCB changed	3
Tab	Tab
