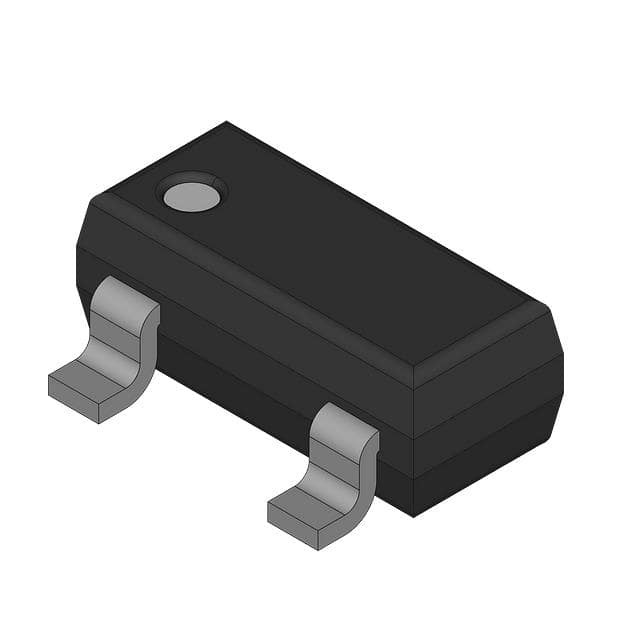

BCW60D

SKU: 74652

Manufacturer: onsemi

Trans GP BJT NPN 32V 0.1A 3-Pin SOT-23 T/R

92750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Small Signal
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	32
Collector-Emitter Voltage-Max (V)	32
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	1.05@1.25mA@50mA
Maximum Collector-Emitter Saturation Voltage (V)	0.55@1.25mA@50mA
Maximum DC Collector Current (A)	0.1
Minimum DC Current Gain	380@2mA@5V
Maximum Power Dissipation (mW)	350
Maximum Transition Frequency (MHz)	125(Min)
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.93
Package Length	2.92
Package Width	1.3
PCB changed	3
