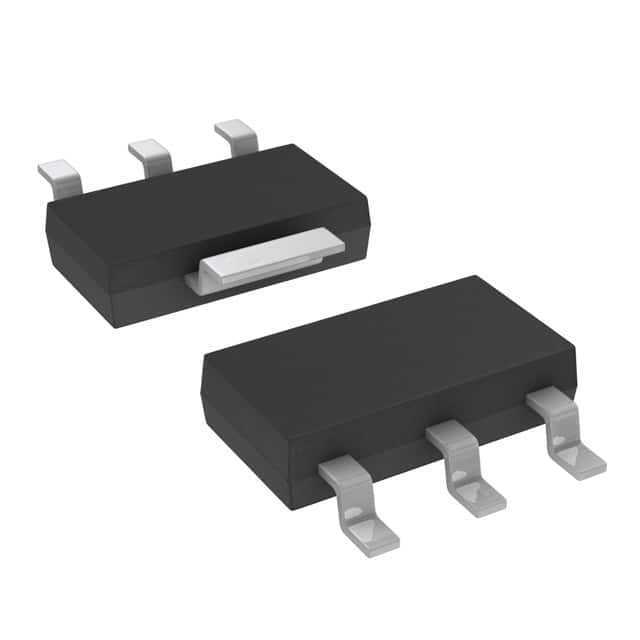

BCP54

SKU: 124191

Manufacturer: onsemi

Trans GP BJT NPN 45V 1.5A 1500mW 4-Pin(3+Tab) SOT-223 T/R

176510 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.75
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Small Signal
Configuration	Single Dual Collector
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	45
Collector-Emitter Voltage-Max (V)	45
Maximum Emitter Base Voltage (V)	5
Maximum Collector-Emitter Saturation Voltage (V)	0.5@50mA@500mA
Maximum DC Collector Current (A)	1.5
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	25@5mA@2V
Maximum Power Dissipation (mW)	1500
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	4
Standard Package Method	SOT
Original Package	SOT-223
Terminal Form	Surface Mount
Package Height	1.69(Max)
Package Length	6.5
Package Width	3.5
PCB changed	3
Tab	Tab
