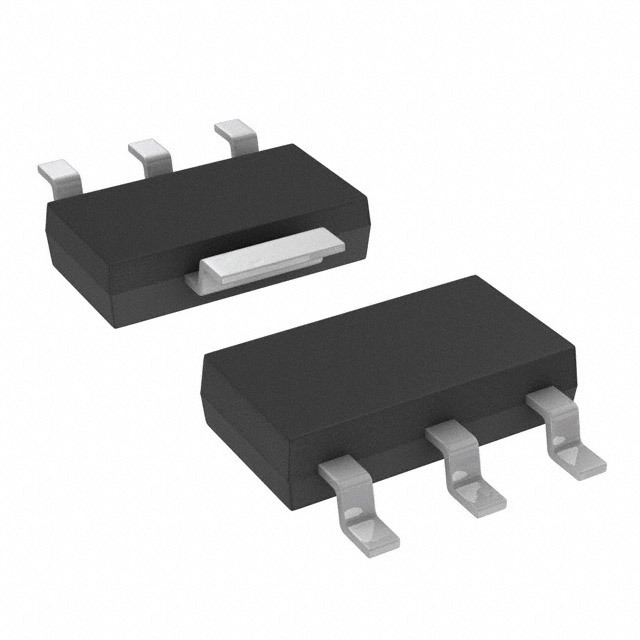

BCP52

SKU: 25135

Manufacturer: onsemi

Trans GP BJT PNP 60V 1.2A 1500mW 4-Pin(3+Tab) SOT-223 T/R

68680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Power
Configuration	Single Dual Collector
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	60
Collector-Emitter Voltage-Max (V)	60
Maximum Emitter Base Voltage (V)	5
Maximum Collector-Emitter Saturation Voltage (V)	0.5@50mA@500mA
Maximum DC Collector Current (A)	1.2
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	25@5mA@2V
Maximum Power Dissipation (mW)	1500
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	4
Standard Package Method	SOT
Original Package	SOT-223
Terminal Form	Surface Mount
Package Height	1.69(Max)
Package Length	6.5
Package Width	3.5
PCB changed	3
Tab	Tab
