BC80725

SKU: 131311

Manufacturer: onsemi

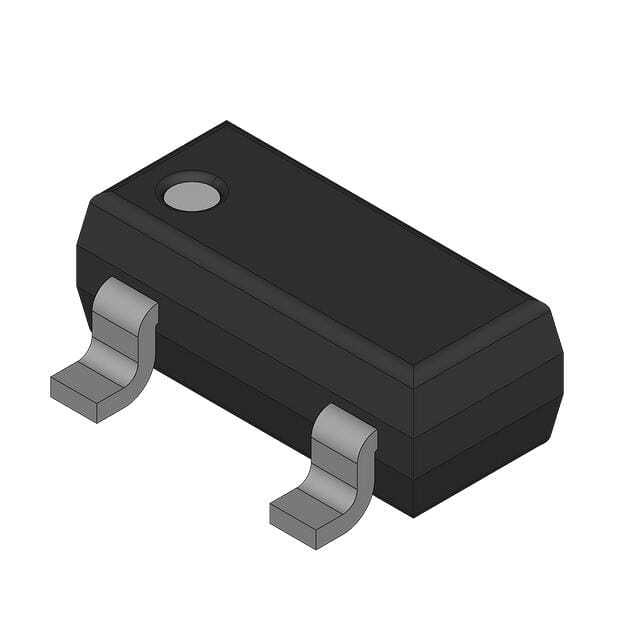

Trans GP BJT PNP 45V 1.2A 350mW 3-Pin SOT-23

1750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Small Signal
Configuration	Single
Number of Elements per pcs	1
Collector-Emitter Voltage-Max (V)	45
Maximum Emitter Base Voltage (V)	5
Maximum Collector-Emitter Saturation Voltage (V)	0.7@50mA@500mA
Maximum DC Collector Current (A)	1.2
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	160@100mA@1V
Maximum Power Dissipation (mW)	350
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	SOT-23
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.93
Package Length	2.92
Package Width	1.3
PCB changed	3
