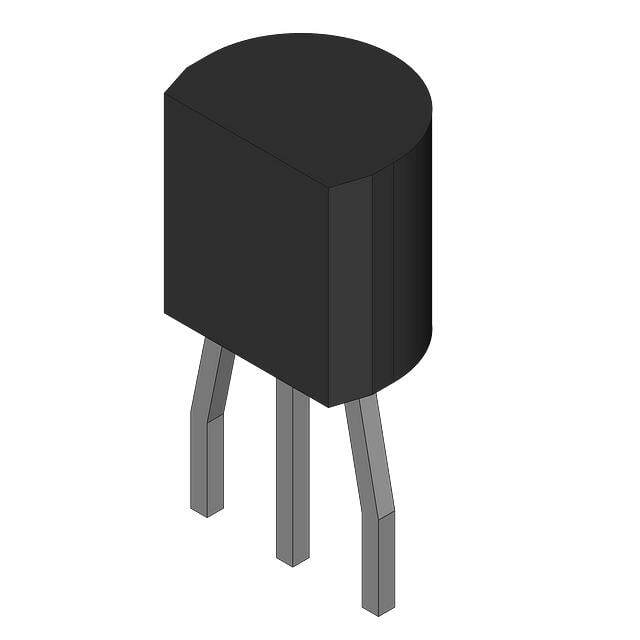

BC327-25RL1G

SKU: 138404

Manufacturer: onsemi

Trans GP BJT PNP 45V 0.8A 1500mW 3-Pin TO-92 T/R

1520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector-Emitter Voltage-Max (V)	45
Maximum Emitter Base Voltage (V)	5
Maximum Collector-Emitter Saturation Voltage (V)	0.7@50mA@500mA
Maximum DC Collector Current (A)	0.8
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	40@300mA@1V
Maximum Power Dissipation (mW)	1500
Maximum Transition Frequency (MHz)	260(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	5.33(Max)
Package Length	5.2(Max)
Package Width	4.19(Max)
PCB changed	3
