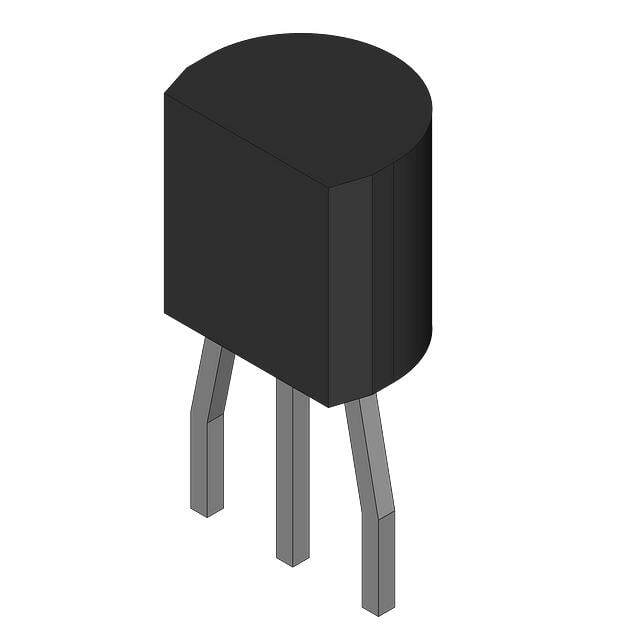

BC307B

SKU: 81655

Manufacturer: onsemi

Trans GP BJT PNP 45V 0.1A 350mW 3-Pin TO-92 T/R

1710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Small Signal
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	50
Collector-Emitter Voltage-Max (V)	45
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	1(Typ)@5mA@100mA
Maximum Collector-Emitter Saturation Voltage (V)	0.3@0.5mA@10mA
Maximum DC Collector Current (A)	0.1
Minimum DC Current Gain	200@2mA@5V
Maximum Power Dissipation (mW)	350
Maximum Transition Frequency (MHz)	280(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	5.33(Max)
Package Length	5.2(Max)
Package Width	4.19(Max)
PCB changed	3
