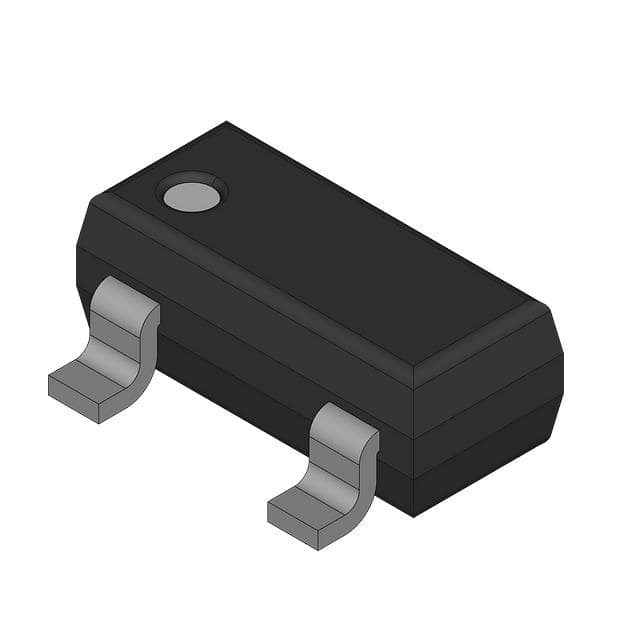

BAR43

SKU: 138372

Manufacturer: onsemi

Rectifier Diode Schottky 30V 0.2A 5ns 3-Pin SOT-23 T/R

12210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Schottky Diode
Maximum DC Reverse Voltage (V)	30
Configuration	Single
Peak Reverse Repetitive Voltage (V)	30
Maximum Continuous Forward Current (A)	0.2
Peak Non-Repetitive Surge Current (A)	0.75
Peak Forward Voltage (V)	0.8@0.1A
Peak Reverse Current (uA)	0.5@25V
Maximum Junction Ambient Thermal Resistance	430°C/W
Maximum Power Dissipation (mW)	290
Peak Reverse Recovery Time (ns)	5
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	3
Standard Package Method	SOT
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	0.94
Package Length	2.9
Package Width	1.3
PCB changed	3
