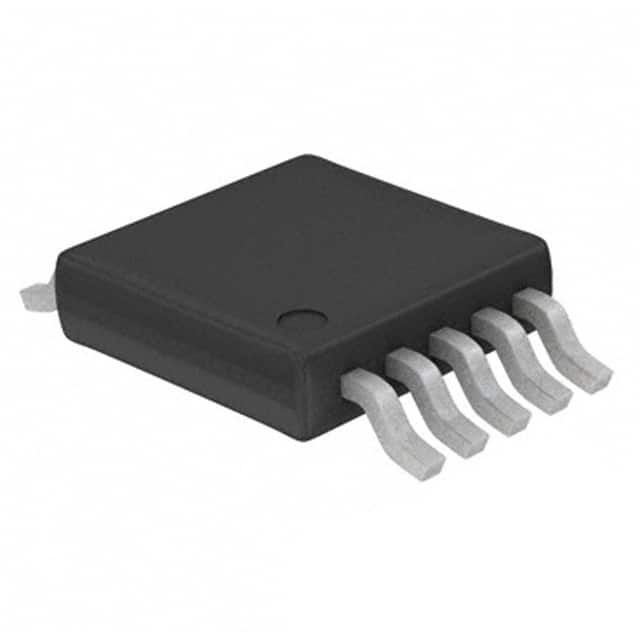

ADP3611JRMZ-REEL

SKU: 102485

Manufacturer: onsemi

Driver 2-OUT High and Low Side Non-Inv 10-Pin Micro T/R

12440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Driver Type	High and Low Side
Driver Configuration	Non-Inverting
Number of Drivers	2
High and Low Sides Dependency	Synchronous
Type	MOSFET
Number of Outputs	2
Maximum Rise Time (ns)	35
Maximum Fall Time (ns)	25
Maximum Propagation Delay Time (ns)	60
Operating Supply Voltage-Min (V)	4.6
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (mA)	1
Typical Input Low Threshold Voltage (V)	0.8(Max)
Typical Input High Threshold Voltage (V)	2(Min)
Output Resistance (Ohm)	1.9
Operating Temperature-Min	-10
Operating Temperature-Max	100
Supplier Temperature Grade	Extended Commercial
Special Features	Under Voltage Lockout
Packing Method	Tape and Reel
Pin Count	10
Standard Package Method	MSOP
Original Package	Micro
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	10
