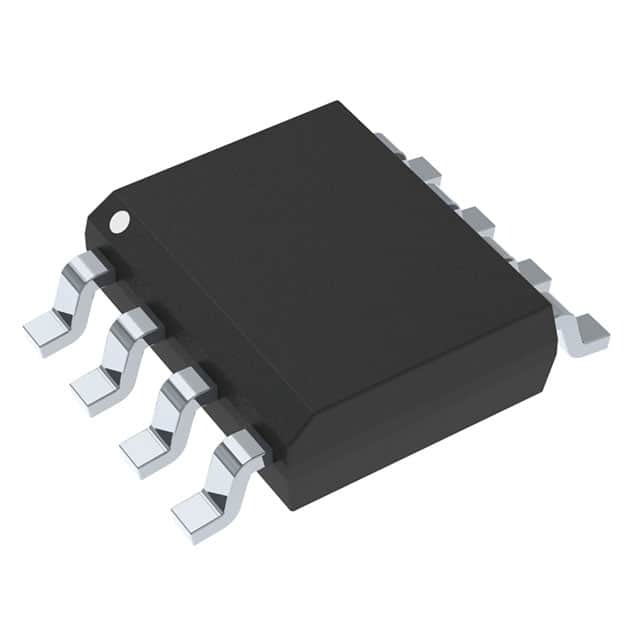

ADP3110AKRZ-RL

SKU: 116641

Manufacturer: onsemi

Driver 2-OUT High and Low Side Inv/Non-Inv 8-Pin SOIC N T/R

23800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High and Low Side
Driver Configuration	Inverting
Number of Drivers	2
High and Low Sides Dependency	Synchronous
Type	MOSFET
Number of Outputs	2
Maximum Rise Time (ns)	55
Maximum Fall Time (ns)	45
Maximum Propagation Delay Time (ns)	65
Operating Supply Voltage-Min (V)	4.15
Operating Supply Voltage-Max (V)	13.2
Maximum Supply Current (mA)	5
Output Resistance (Ohm)	3.4
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
