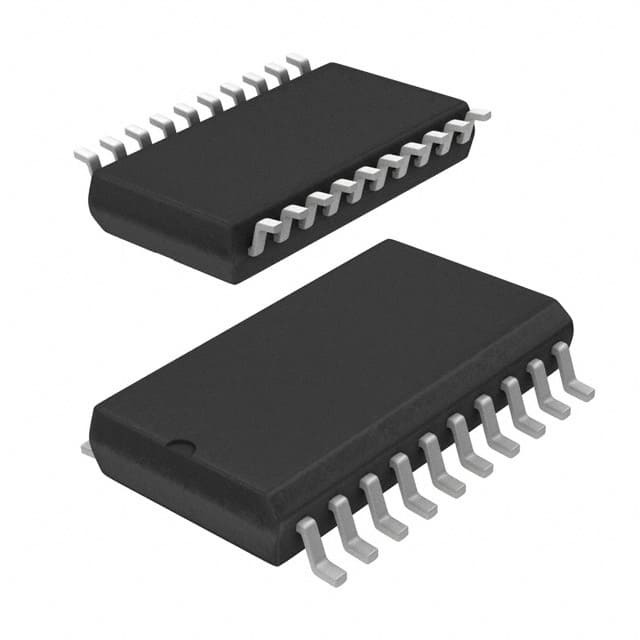

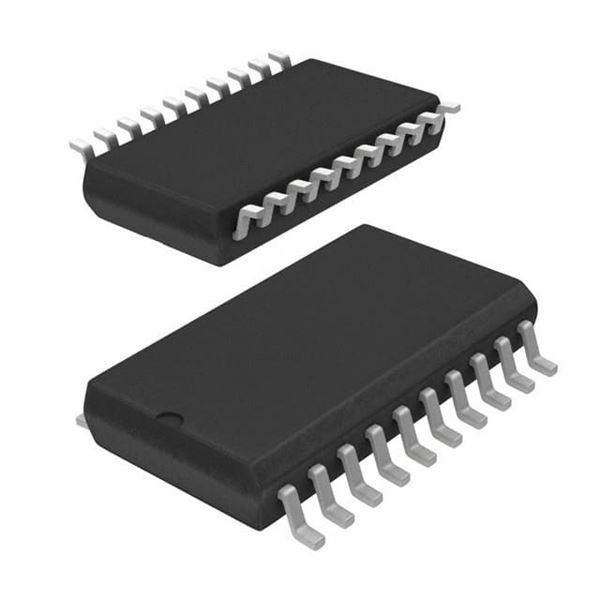

74F245SC onsemi

74F245SC

SKU: 144703

Manufacturer: onsemi

Bus XCVR Single 8-CH 3-ST 20-Pin SOIC W Rail

Download sample

Request Free Samples

330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Logic Family	F
Logic Function	Bus Transceiver
Data Flow Direction	Bi-Directional
Number of Elements per pcs	1
Number of Channels per Chip	8
Number of Selection Inputs per Element	0
Number of Output Enables per Element	1 Low
Number of Input Enables per Element	0
Number of Direction Control Inputs	1 Low/High
Bus Hold	No
Polarity	Non-Inverting
Absolute Propagation Delay Time (ns)	9
Maximum Propagation Delay Time @ Maximum CL (ns)	6@5V
Propagation Delay Test Condition (pF)	50
Process Technology	Bipolar
Input Level	TTL
Output Level	TTL
Output Type	3-State
Maximum Low Level Output Current (mA)	64
Maximum High Level Output Current (mA)	-15
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Rail
Standard Package Method	SOP
Original Package	SOIC W
Pin Count	20
Terminal Form	Surface Mount
Package Height	2.35(Max)
Package Length	12.8
Package Width	7.5
PCB changed	20
