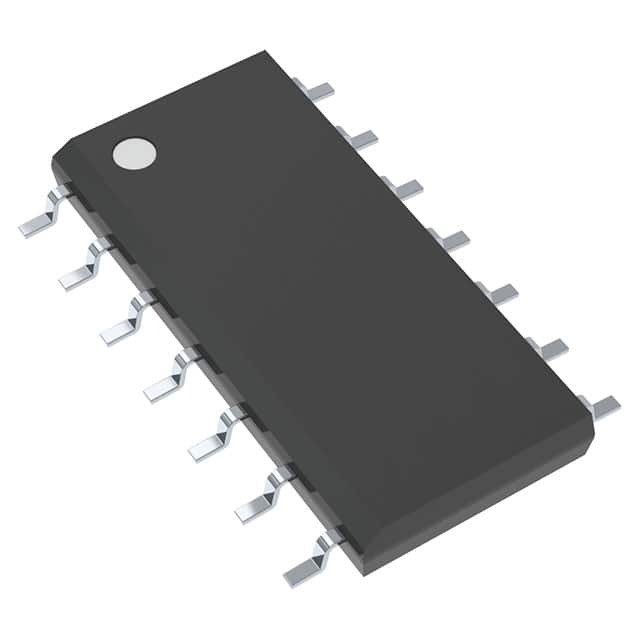

74ACT125SC

SKU: 130542

Manufacturer: onsemi

Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin SOIC N Rail

520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	ACT
Logic Function	Buffer/Line Driver
Number of Elements per pcs	4
Number of Channels per Chip	4
Number of Inputs per Chip	4
Number of Input Enables per Chip	0
Number of Outputs per Chip	4
Number of Output Enables per Chip	4 Low
Bus Hold	No
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	9@5V
Absolute Propagation Delay Time (ns)	10.5
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	24
Maximum High Level Output Current (mA)	-24
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (uA)	4
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Rail
Standard Package Method	SOP
Original Package	SOIC N
Pin Count	14
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	8.75(Max)
Package Width	4(Max)
PCB changed	14
