6HP04MH-TL-W

SKU: 87997

Manufacturer: onsemi

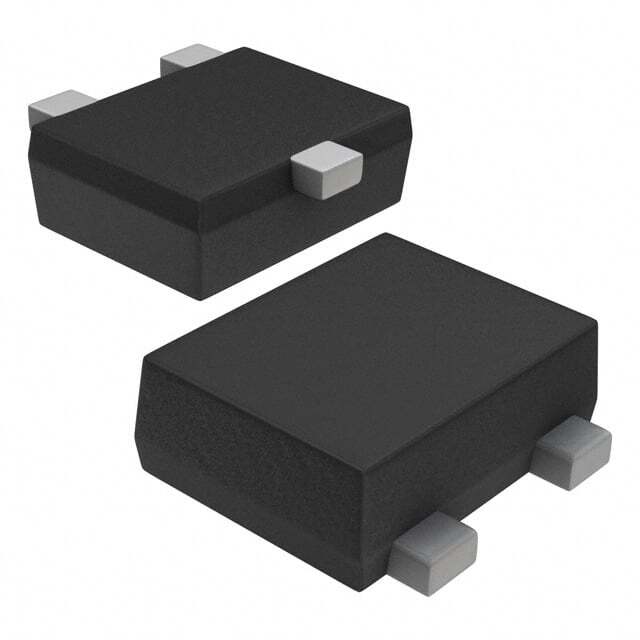

Trans MOSFET P-CH 60V 0.37A 3-Pin MCPH T/R

3870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.21.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Operating Junction Temperature (°C)	150
Maximum Continuous Drain Current (A)	0.37
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	4200@10V
Typical Gate Charge @ Vgs (nC)	0.84@10V
Typical Gate Charge @ 10V (nC)	0.84
Typical Gate to Drain Charge (nC)	0.21
Typical Gate to Source Charge (nC)	0.19
Typical Input Capacitance @ Vds (pF)	24.1@20V
Typical Reverse Transfer Capacitance @ Vds (pF)	4.1@20V
Typical Output Capacitance (pF)	8.5
Maximum Power Dissipation (mW)	600
Typical Fall Time (ns)	41
Typical Rise Time (ns)	15.2
Typical Turn-Off Delay Time (ns)	113
Typical Turn-On Delay Time (ns)	18.4
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum Positive Gate Source Voltage (V)	20
Maximum Pulsed Drain Current @ TC=25°C (A)	1.48
Typical Diode Forward Voltage (V)	0.92
Typical Gate Plateau Voltage (V)	3.5
Maximum Diode Forward Voltage (V)	1.2
Original Package	MCPH
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.88(Max)
Package Length	2
Package Width	1.6
PCB changed	3
