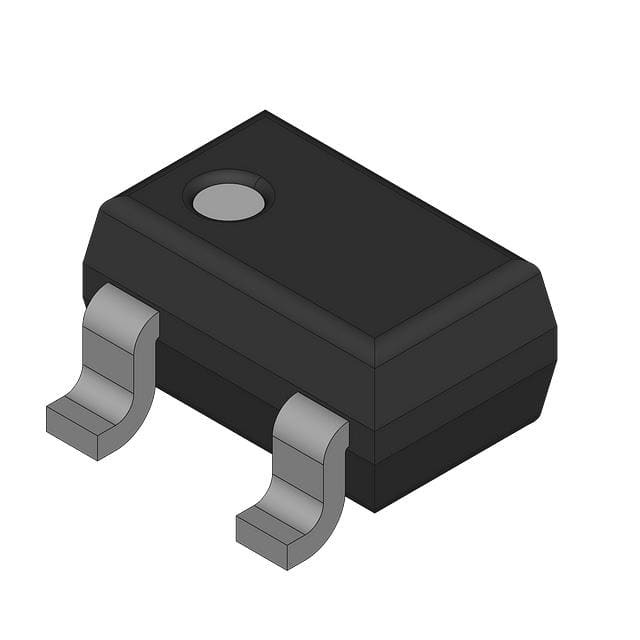

5HP01M-TL-E

SKU: 66866

Manufacturer: onsemi

Trans MOSFET P-CH Si 50V 0.07A 3-Pin Case MCP T/R

13240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Small Signal
Body Material	Si
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	50
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	0.07
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	22000@10V
Typical Gate Charge @ Vgs (nC)	1.32@10V
Typical Gate Charge @ 10V (nC)	1.32
Typical Input Capacitance @ Vds (pF)	6.2@10V
Maximum Power Dissipation (mW)	150
Typical Fall Time (ns)	150
Typical Rise Time (ns)	10
Typical Turn-Off Delay Time (ns)	100
Typical Turn-On Delay Time (ns)	13
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	Case MCP
Pin Count	3
Standard Package Method	Module
Terminal Form	Surface Mount
Package Height	0.9
Package Length	2
Package Width	1.25
PCB changed	3
