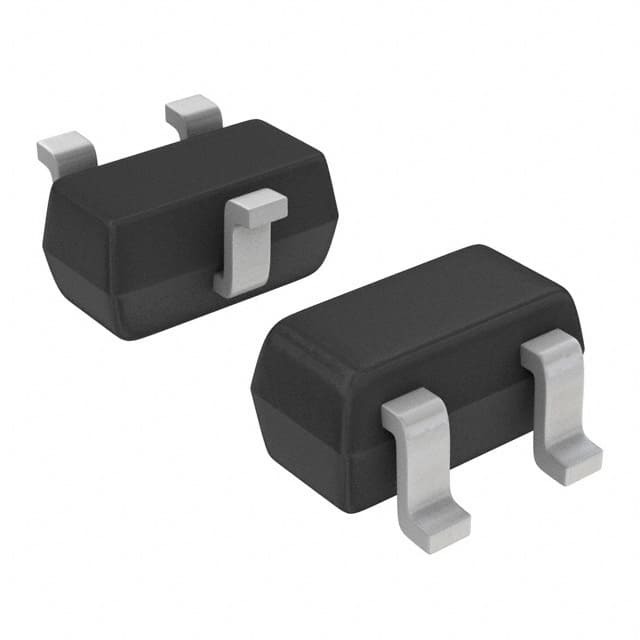

3LN01SS-TL-H

SKU: 73806

Manufacturer: onsemi

Trans MOSFET N-CH Si 30V 0.15A 3-Pin SSFP T/R

12970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±10
Maximum Continuous Drain Current (A)	0.15
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	3700@4V
Typical Gate Charge @ Vgs (nC)	1.58@10V
Typical Gate Charge @ 10V (nC)	1.58
Typical Input Capacitance @ Vds (pF)	7@10V
Maximum Power Dissipation (mW)	150
Typical Fall Time (ns)	120
Typical Rise Time (ns)	65
Typical Turn-Off Delay Time (ns)	155
Typical Turn-On Delay Time (ns)	19
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SSFP
Pin Count	3
Terminal Form	Surface Mount
Package Height	0.6
Package Length	1.4
Package Width	0.8
