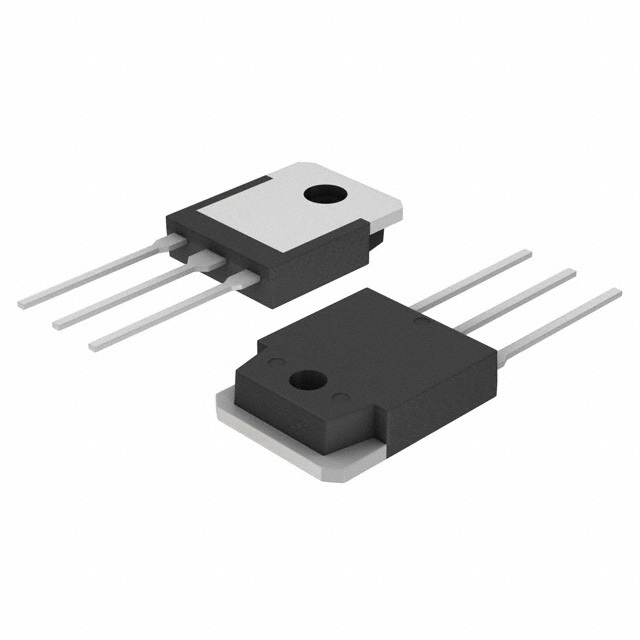

2SK3746-1E

SKU: 93331

Manufacturer: onsemi

Trans MOSFET N-CH 1.5KV 2A 3-Pin(3+Tab) TO-3P Tube

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	1500
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	2
Maximum Drain Source Resistance (mOhm)	13000@10V
Typical Gate Charge @ Vgs (nC)	37.5@10V
Typical Gate Charge @ 10V (nC)	37.5
Typical Input Capacitance @ Vds (pF)	380@30V
Maximum Power Dissipation (mW)	2500
Typical Fall Time (ns)	59
Typical Rise Time (ns)	37
Typical Turn-Off Delay Time (ns)	152
Typical Turn-On Delay Time (ns)	12
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-3P
Pin Count	3
Standard Package Method	TO-3P
Terminal Form	Through Hole
Package Length	15.6
Package Width	4.8
PCB changed	3
Tab	Tab
