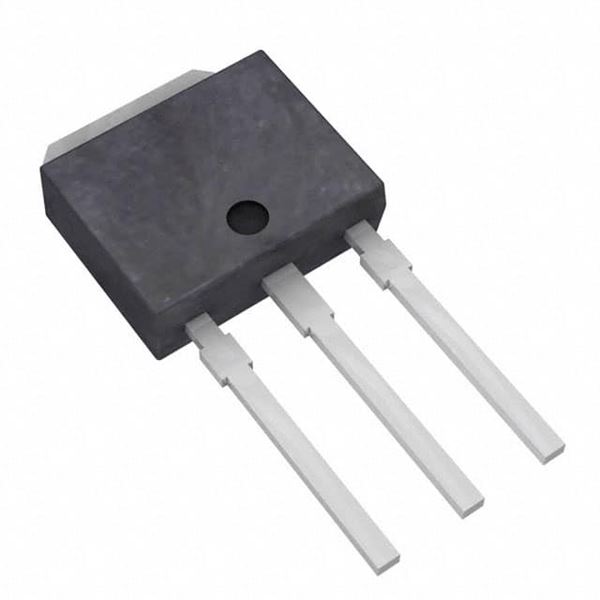

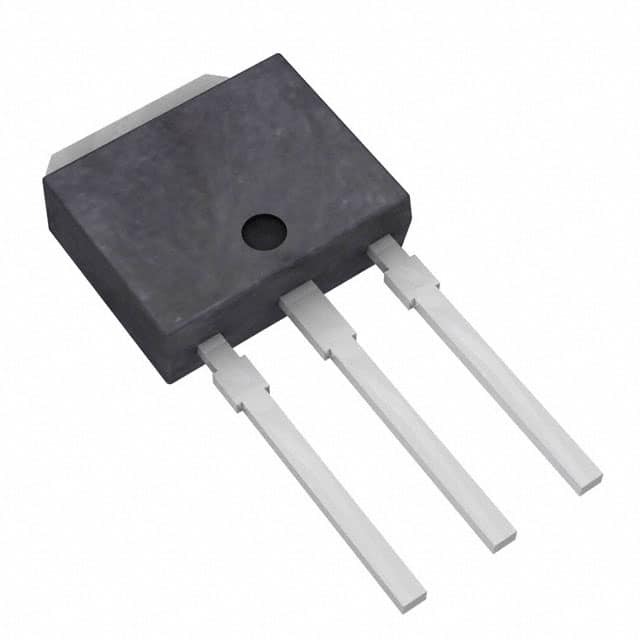

2SC6097-TL-E

SKU: 8585

Manufacturer: onsemi

Trans GP BJT NPN 60V 3A 800mW 3-Pin(2+Tab) DPAK T/R

5960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	100
Collector-Emitter Voltage-Max (V)	60
Maximum Emitter Base Voltage (V)	6.5
Maximum Base Emitter Saturation Voltage (V)	1.2@100mA@1A
Maximum Collector-Emitter Saturation Voltage (V)	0.15@50mA@1A
Maximum DC Collector Current (A)	3
Minimum DC Current Gain	300@100mA@2V
Maximum Power Dissipation (mW)	800
Maximum Transition Frequency (MHz)	390(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	3
Standard Package Method	TO-252
Original Package	DPAK
Terminal Form	Surface Mount
Package Height	2.3
Package Length	6.5
Package Width	5.5
PCB changed	2
Tab	Tab
