2SC3649T-TD-E

SKU: 6101

Manufacturer: onsemi

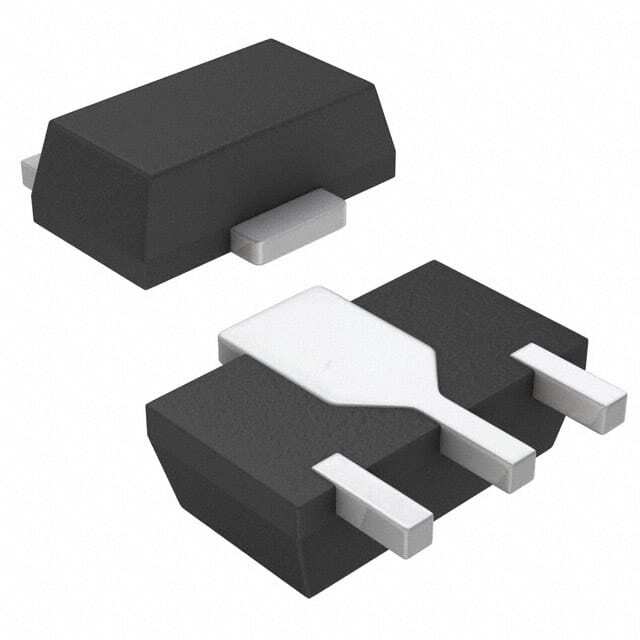

Trans GP BJT NPN 160V 1.5A 1500mW 4-Pin(3+Tab) SOT-89 T/R

2010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.75
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Body Material	Si
Configuration	Single Dual Collector
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	180
Collector-Emitter Voltage-Max (V)	160
Maximum Emitter Base Voltage (V)	6
Maximum Base Emitter Saturation Voltage (V)	1.2@50mA@500mA
Maximum Collector-Emitter Saturation Voltage (V)	0.45@50mA@500mA
Maximum DC Collector Current (A)	1.5
Minimum DC Current Gain	200@100mA@5V
Maximum Power Dissipation (mW)	1500
Maximum Transition Frequency (MHz)	120(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-89
Pin Count	4
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.5
Package Length	4.5
Package Width	2.5
PCB changed	3
Tab	Tab
